41 12 557 Middle Luggage Compartment Floor Section Replacement (Tail Panel Removed): Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 2!
Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

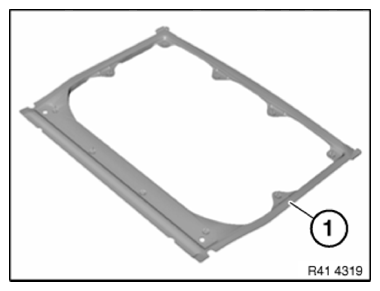

- (1) Frame, luggage compartment floor
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Punch rivets N5 | 8 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
