41 5.... Adjust Rear Side Doors: Notes

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Do not damage adjoining body parts.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

NOTE: Observe BODY GAP DIMENSIONS .
The door must be provided with all attachment parts for correct adjustment.
Adjust screwed body parts from rear to front.
The following illustrations are schematic representations and are to be applied to the relevant vehicle type.

Slacken lock striker, remove if necessary.

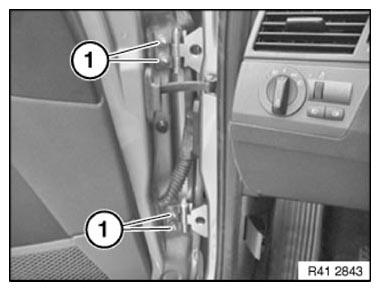

Slacken nuts (1) until door can still just be moved.

Tightening torque 41 51 2AZ .

Tightening torque 41 52 2AZ .

Fig 1: Identifying Lock Striker Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

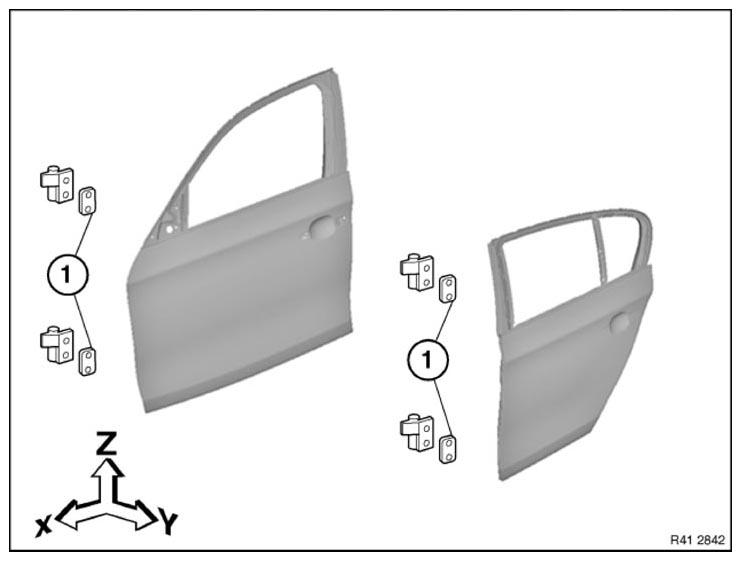

Adjust rear door in transition to front door (Y) by fitting shims.

Installation:

To preset new part, carry over number of shims from damaged door.

Adjust door longitudinally (X) and vertically (Z).

Fig 2: Adjusting Door

Courtesy of BMW OF NORTH AMERICA, INC.

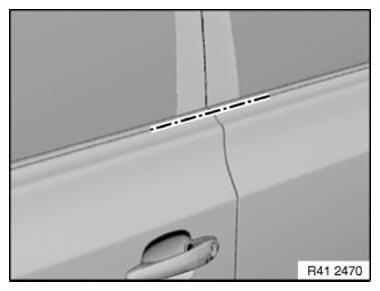

Check that adjoining body parts are flush in terms of height and correct if necessary.

NOTE: Vertical adjustment of door must not be influenced by lock striker.
When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratches.

Fig 3: Identifying Door Vertical Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

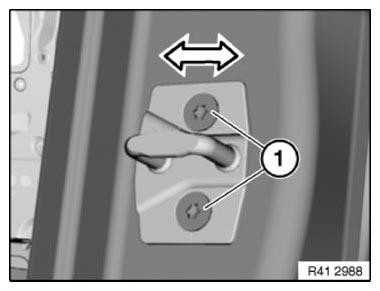

Slacken screws (1) until lock striker can still just be moved.

Move lock striker sideways in order to adjust transition between door and rear side panel.

Tightening torque 51 21 2AZ .

NOTE: When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratches.

Fig 4: Identifying Lock Striker Screws

Courtesy of BMW OF NORTH AMERICA, INC.
