41 31 010 Outer Roof Skin Replacement (Version With Slide/Tilt Sunroof): Notes

Read contents of BODY, GENERAL .

STRIP DOWN  vehicle.

Observe procedure for REPAIR STAGE 2 .

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):

• (1) Roof outer skin, slide/tilt sunroof
• Star screws (4x, order no. 07 14 7 153 767)

Following CONSUMABLES  are required:

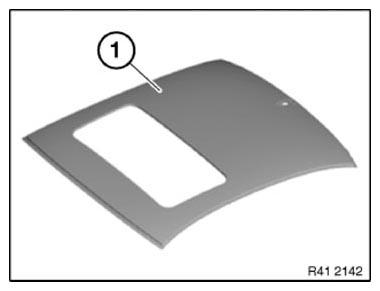

Fig 1: Identifying Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

Tools also required:

• Roof pliers set, part number: 2 158 707
• Sourcing reference:

BMW WORKSHOP EQUIPMENT CATALOGUE
