41 12 651 Left Luggage Compartment Floor Replacement (Tail Panel Or Side Wall Removed): Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
Procedure OBSERVE repair stage 2!

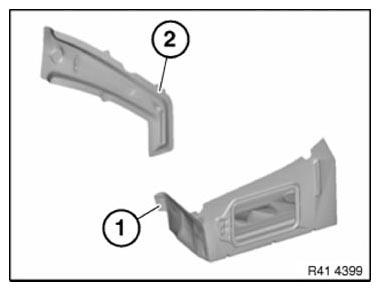

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):
- (1) Luggage compartment floor, left section
- (2) Left tensioning strap C-pillar
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivet N3 | 20 |
| EMC screws | 8 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
