41 12 590 Luggage Compartment Floor Replacement (Complete, I.E. Including Inner Wheel Arch Section On The Left Or Right, Tail Panel Removed): Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

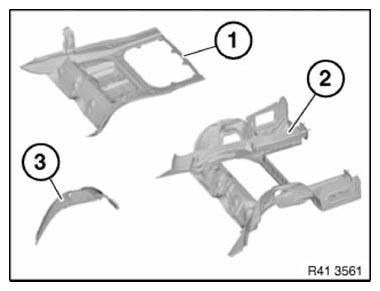

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):
- (1) Upper part of the luggage compartment floor
- (2) Rear axle support
- (3) Wheel arch, rear, inner half, left
- Touring only:
(4) Rear trailing link holder (without figure)
