41 12 535 Rear Luggage Compartment Floor Complete Replacement (Tail Panel Removed): Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
STRIP DOWN vehicle.
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.
Follow procedure for REPAIR STAGE 3 .

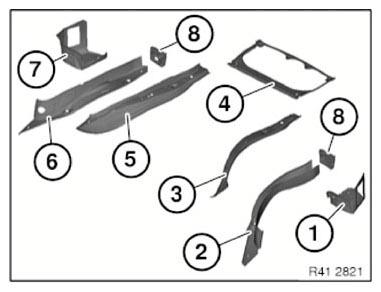

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):
- (1) Luggage compartment floor, left section
- (2) Frame side member, left
- (3) Frame side member, top left
- (4) Frame, luggage compartment floor
- (5) Frame side member, top right
- (6) Frame side member, right
- (7) Luggage compartment floor, right
- (8) Mounting for left and right bumper
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| R1 cleaning agent | 1 |
| Blind rivets N3 | 18 |
| Punch rivets N5 | 8 |
| EMC screws | 12 |
| Sealant D1 | |
| Cavity wax remover |
