41 33 040 Front Left Or Right Side Wall Holder Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE: Read contents of BODY, GENERAL .
Side wall removed.
Transfer the systematic diagram onto the respective holder version.

General information:

Procedure OBSERVE repair stage 2!

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

Following CONSUMABLES are required:

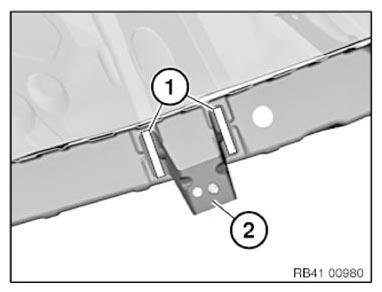

Fig 1: Identifying Right Side Wall Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of side wall holder (variant 1):

Release welded connections in areas (1) and remove holder (2).

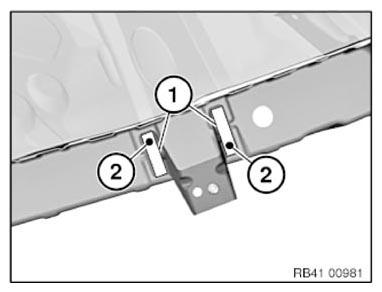

Fig 2: Identifying Holder And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

In area of bonding surfaces (1), set 2 4.2 mm dia. bore holes (2) for blind rivets N3.

Remove new part and deburr holes.

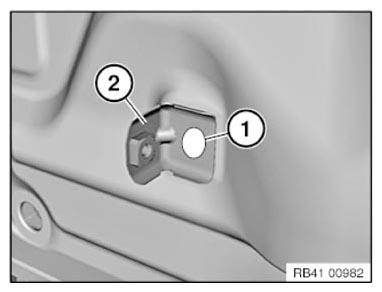

Fig 3: Identifying Bore Holes And Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind bonding surfaces down or off.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

Removal of side wall holder (variant 2):

Release welded connection in area (1) and remove holder (2).

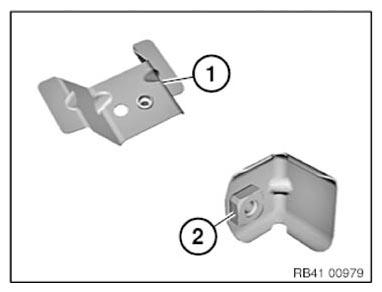

Fig 4: Identifying Holder And Welded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

In area of adhesive surface (1), drill a 4.2 mm dia. bore hole (2) for blind rivet N3.

Remove new part and deburr holes.

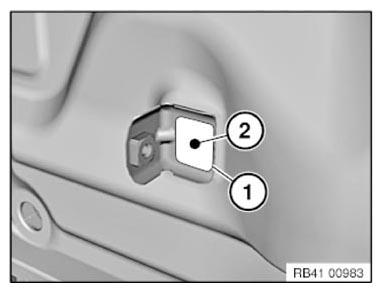

Fig 5: Identifying Bore Hole And Adhesive Surface

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind bonding surfaces down or off.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
