52 24 408 Replacing backrest cover for rear seat

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks

Specification with centre armrest:

Unclip cover (1) towards front.

Installation:

If necessary, replace faulty clips (2).

Fig 1: Removing Cover Toward Front

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover (1) in marked area from backrest frame.

Fig 2: Disconnect Backrest Cover In Marked Area From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from backrest cover in marked area from backrest frame.

Release all retainers in area of left and right guides.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Remove backrest cover with padding from backrest frame.

Fig 3: Removing Backrest Cover With Padding From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover from upholstery:

Release all retainers in marked area.
Remove cover from padding
Remove remaining retainers from cover and padding.

Fig 4: Identifying Retainers In Marked Area
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

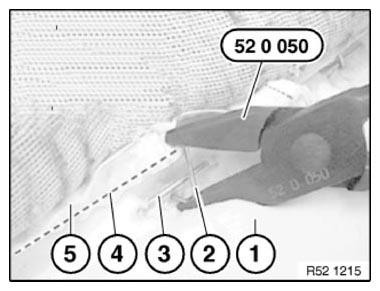

Fig 5: Inserting Clamp Using Special Tool 52 0 050

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Remove all trim wires from cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into pockets

Fig 6: Identifying Trim Wires In Pockets
Courtesy of BMW OF NORTH AMERICA, INC.
