52 16 055 Replacing an air cushion for backrest width adjustment left or right

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

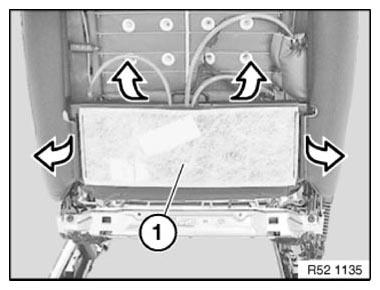

Detach backrest cover (1) from backrest frame.

Fig 1: Disconnecting Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removal operation is shown on left side, right analogous to that.
The air cushion must be deflated completely.

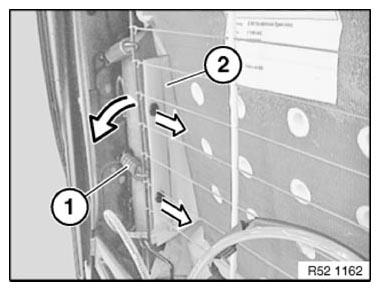

Disconnect spring (1).

Lift out clips with plastic wedge.

Feed out air cushion (2) between spring wire and backrest frame.

Installation note:

Insert the air cushion without kinks.

Check air cushion for damage.

Fig 2: Inserting Air Cushion Without Kinks

Courtesy of BMW OF NORTH AMERICA, INC.

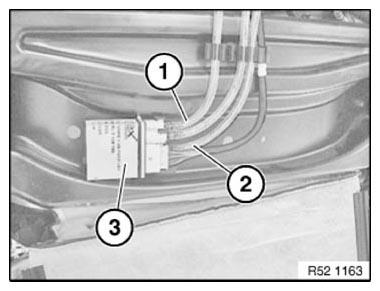

Unlock quick connectors and detach air hoses (1 and 2) from valve body (3).

If necessary, remove VALVE HOUSING .

Installation note:

Connections are coded against incorrect assembly.

Air hoses must not be kinked.

Fig 3: Identifying Air Hoses On Valve Body

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK
