52 13 198 Removing and installing or replacing rear panel on left or right front seat backrest

WARNING: This page is about a different variant/trim than selected.

Release clips (1) with diagonal cutting pliers.

Remove rear panel (2) downwards with a rotational movement.

NOTE: Remove remnants of clips.

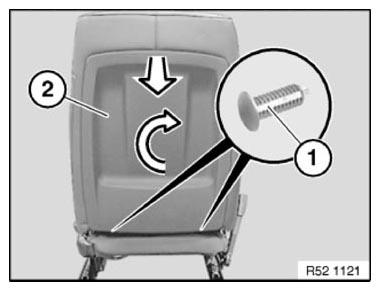

Fig 1: Removing Rear Panel Downwards With Rotational Movement

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining hooks (1) and bore holes (2) on rear panel (3) must not be damaged.

Replace faulty clips.

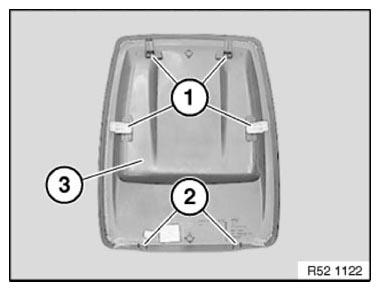

Fig 2: Identifying Hooks, Bore Holes And Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.
