52 14 392 Removing and installing/replacing front left or right crash-active head restraint (from 09/08)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Observe SAFETY REGULATIONS
when handling airbag modules.
Incorrect handling may result in triggering of the crash-active headrest and thereby cause injury.
Incorrect handling may result in triggering of the crash-active headrest and thereby cause injury.
Switch off the ignition!
Necessary preliminary tasks
- Disconnect NEGATIVE BATTERY CABLE .
- Remove REAR PANEL .
Starting situation:
Head restraint is in the crash position after being triggered.

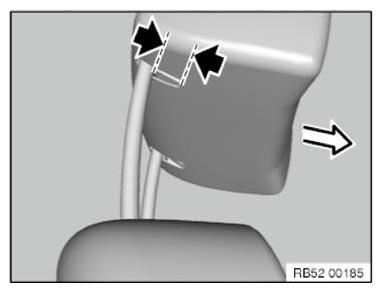

A triggered head restraint can be recognized by the padded section which has moved upwards.

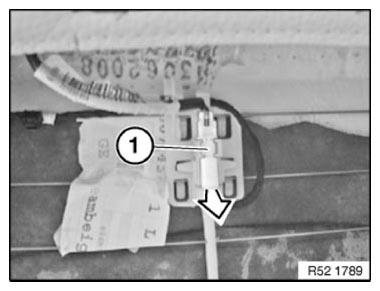

Unclip PLUG CONNECTION (1) for crash-active headrest from holder.
Unfasten plug connection (1) and disconnect.

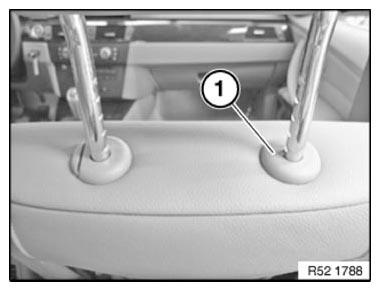

Lever out sealing cap (1).

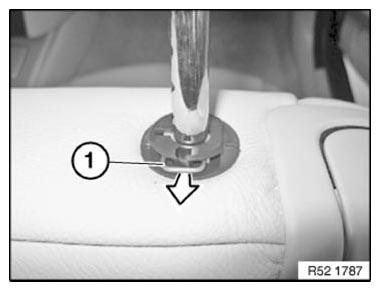

Detach omega clip (1).

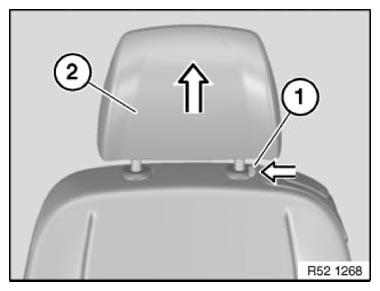

Press latch mechanism (1) and lift out head restraint (2).
