31 12 080 Removing and installing/replacing both tension struts

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: On M models replace trailing links in pairs.

Necessary preliminary work

REMOVE front underbody protection.
Remove BOTH FRONT WHEELS .
Release WHEEL ARCH COVER on front left and right bottom and press to one side (only E82/E88/E92/E93)

Remove pedestrian protection (only E82/E88/E92/E93 from 03/2012):

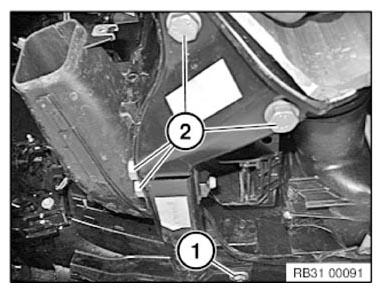

Slacken screw (1) on front pedestrian protection.

Release screws (2) from deformation element and adapter.

Tightening torque 51 11 7AZ/8AZ

Fig 1: Identifying Front Pedestrian Protection And Adapter Screws

Courtesy of BMW OF NORTH AMERICA, INC.

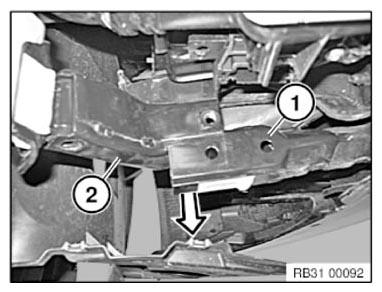

Press deformation element (1) towards the bottom and remove adapter (2) towards the top.

Fig 2: Removing Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

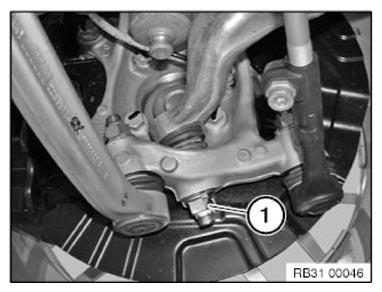

Release nut (1), if necessary, grip at inner Torx socket.

Tightening torque 31 12 2AZ .

Installation note:

Keep tension strut to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

Fig 3: Identifying Tension Strut Nut

Courtesy of BMW OF NORTH AMERICA, INC.

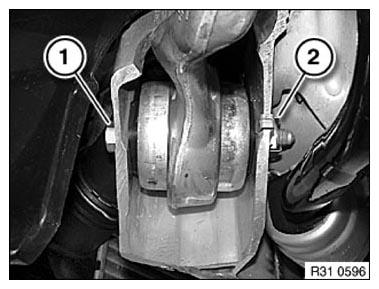

Release bolt (1) and remove tension strut.

Tightening torque 31 12 1AZ

Raise locking nut (2) at area of bore and pull off from front axle support.

Installation note:

Replace locking nut.

Tighten down screw connection in NORMAL POSITION .

Fig 4: Identifying Tension Strut Bolt And Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.
