31 12 050 Removing and installing/replacing left or right trailing link

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary work

Remove FRONT WHEEL .
Remove FRONT UNDERBODY PROTECTION .
Release WHEEL ARCH COVER at front left and right and press to one side (only E82/E88/E92/E93 from 03/2012).

Remove pedestrian protection (only E82/E88/E92/E93 from 03/2012):

Slacken screw (1) on front pedestrian protection.

Release screws (2) from deformation element and adapter.

Tightening torque 51 11 7AZ/8AZ

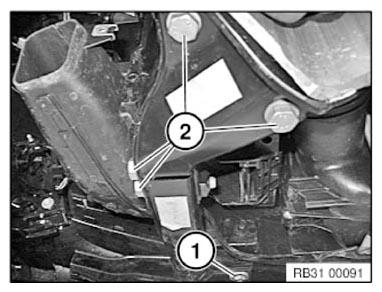

Fig 1: Identifying Front Pedestrian Protection And Adapter Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press deformation element (1) towards the bottom and remove adapter (2) towards the top.

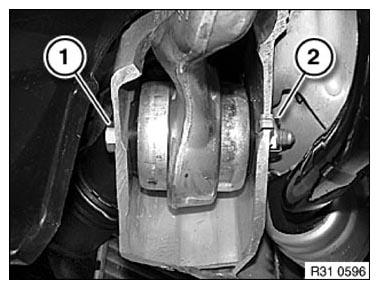

Fig 2: Removing Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1); if necessary, grip at Torx socket.

Installation note:

Keep tension strut to swivel bearing connection clean and free from oil and grease.

Replace self-locking nut.

Tightening torque 31 12 2AZ .

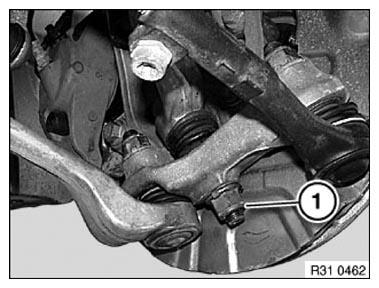

Fig 3: Identifying Tension Strut Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) and remove tension strut.

Raise locking nut (2) in area of bore and detach from front axle support.

Installation note:

Replace locking nut.

Tighten screw connection in NORMAL POSITION .

Tightening torque 31 12 1AZ .

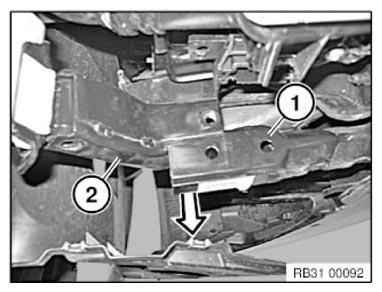

Fig 4: Identifying Tension Strut Bolt And Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.
