31 12 000 Removing and installing/replacing left or right wishbone
Necessary preliminary tasks
- Remove FRONT WHEEL . (outer M3, M Coupe)
- REMOVE front underbody protection. (outer M3)
Outer M3, M Coupe:
If necessary, remove jointed rod of ride height sensor from wishbone.
M3, M Coupe:

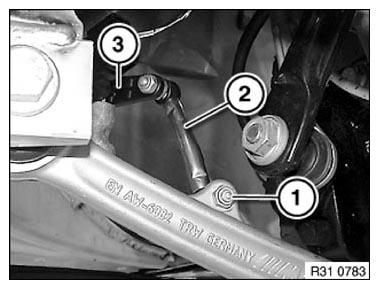

Slacken nut (1).
Remove jointed rod (2) from wishbone.
Installation note:
Sensor lever (3) must point from ride height sensor to left front wheel.
Tightening torque 37 14 3AZ

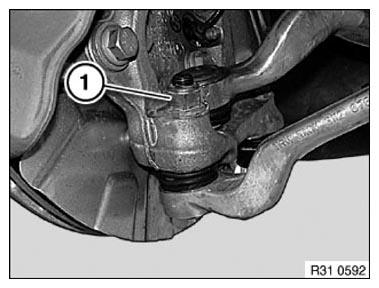

Release nut (1), if necessary, counter-hold at inner Torx (T40).
Installation note:
Keep wishbone to swivel bearing connection clean and free from oil and grease.
Replace self-locking nut.
Tightening torque 31 12 4AZ

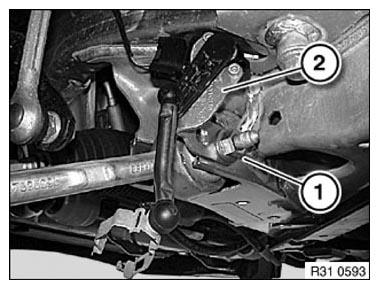

Slacken nut (1).
Remove screw towards front; if necessary remove bracket (2) with ride-height sensor.
Take off wishbone.
Installation note:
Screw head must point in direction of travel.
Replace self-locking nut.
Tighten down bolt connection in NORMAL POSITION .
Tightening torque 31 12 3AZ
After installation:
- Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
