31 35 005 Removing and installing/replacing push rod (anti-roll bar link) for left/right anti-roll bar

Note (for M3, M Coupe):

Make sure anti-roll bar link is installed in correct position.

1. Connection, anti-roll bar link to spring strut
2. Connection, anti-roll bar link to anti-roll bar

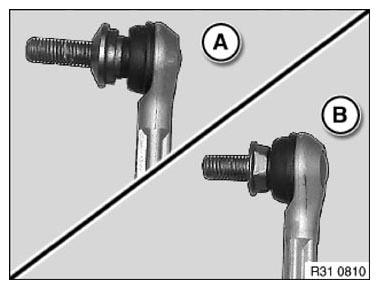

   Fig 1: Identifying Anti Roll Bar Link

   Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove bracket for brake hose.

Release nut (3) and remove anti-roll bar link (2).

Installation note:

Tightening torque 31 35 2AZ .

Replace self-locking nuts.

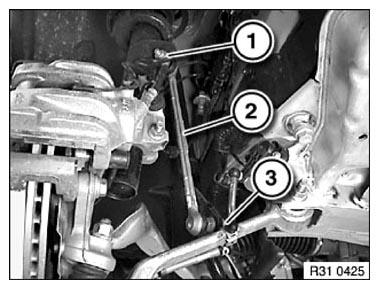

Fig 2: Identifying Brake Hose Bracket Nut And Anti Roll Bar Link Nut

Courtesy of BMW OF NORTH AMERICA, INC.
