51 12... Remove and install rear bumper panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove REAR LIGHTS ON SIDE PANEL on left/right

Lever out cover (1) and release screw underneath.

Fig 1: Identifying Side Panel Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screw (1).

Bend wheel arch panel (2) in area (A) to one side.

Release screw (3).

Fig 2: Identifying Wheel Arch Panel With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

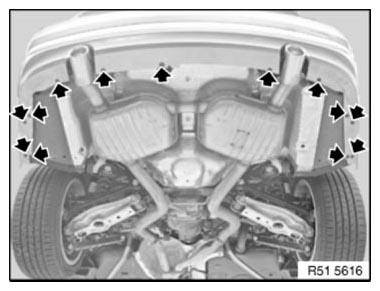

Fig 3: Locating Wheel Arch Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

IMPORTANT: Do not pull off bumper panel (3) to the sides. (Risk of damage).

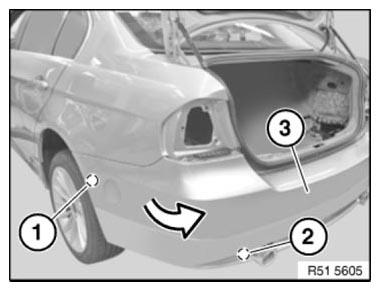

Fig 4: Pulling Off Bumper Panel To Sides

Courtesy of BMW OF NORTH AMERICA, INC.

Press bumper panel (3) at point (1) downwards and simultaneously pull to the rear-upwards at point (2) in the direction of the arrow and so, release the latch mechanisms.

Version with PDC:

Disconnect plug connection of the ultrasonic sensors.

Remove bumper panel (1) towards the rear with the aid of an assistant.

Installation note:

Latch mechanisms on bumper panel (1) must not be damaged.

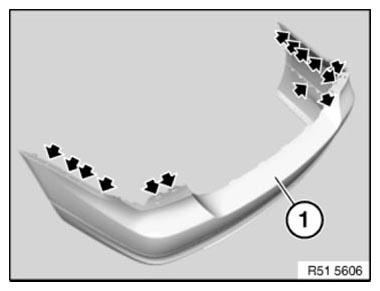

Fig 5: Identifying Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.
