51 16 366 Removing and installing right glove box (with airbag) with housing

WARNING: This page is about a different variant/trim than selected.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.

IMPORTANT: Do not carry out any repairs on airbag module!
Always replace the passenger protection airbag module completely!

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Installation note:

Microencapsulated screws must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Clean thread of nut beforehand in event of repeated use

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE
Open glove box.

Version with cup holder:

Remove both CUP HOLDERS at the front

Release screws (1).

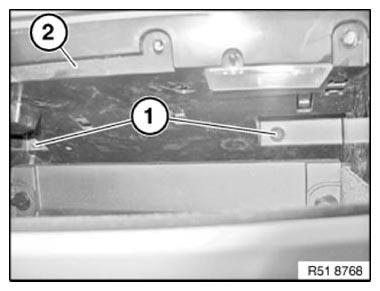

Fig 1: Identifying Cup Holder Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Replace micro-encapsulated screws (1).

Tightening torque 72 12 8AZ .

Pull out glove box (2) slightly.

Fig 2: Identifying Micro-Encapsulated Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and feed cable out of guides.

Depending on the version, disconnect additional plug connections.

Remove the glove box (2).

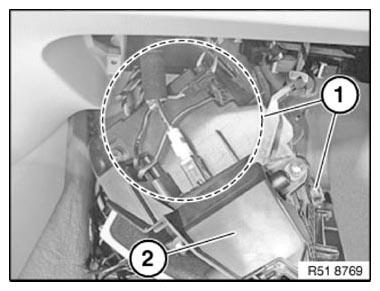

Fig 3: Identifying Glove Box And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) for glove box must not be damaged or missing.

Version with cup holder:

Guides (2) for cup holder must not be damaged or missing.

Fig 4: Identifying Guides For Glove Box And Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Always replace the passenger protection airbag module completely! Do not carry out any repairs on airbag module!
