51 16 360 Removing and installing right glove box

Necessary preliminary tasks:

• Remove INSTRUMENT PANEL TRIM , bottom right

Release screws (1) and remove counter support (2).

Installation note:

Align glove box and screw down counter support (2).

Check gap dimensions and closing comfort of glove box, realign if necessary.

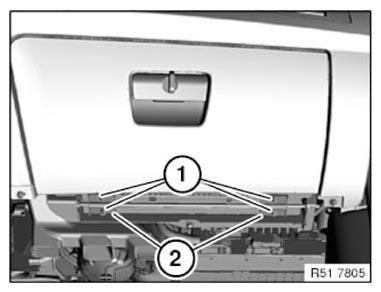

Fig 1: Identifying Counter Support With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release clip (1).

Remove glove box (2) in inward direction.

If necessary, disconnect plug-in contacts.

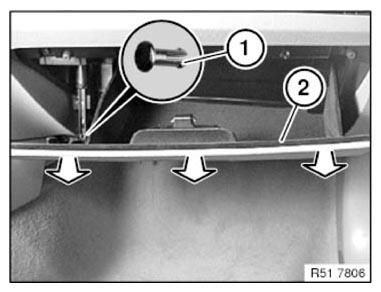

Fig 2: Removing Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.
