51 16 045 Removing and installing/replacing retaining ring on left or right exterior mirror

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

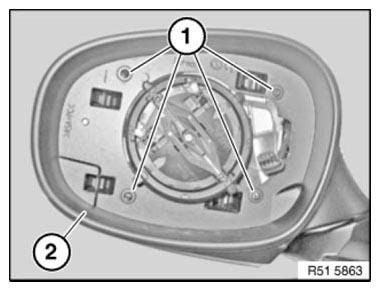

Release screws (1) on retaining ring (2).

Fig 1: Identifying Screws On Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

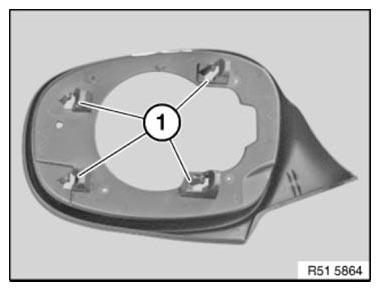

Locators (1) for multitooth catches must not be damaged.

Fig 2: Identifying Locators For Multitooth Catches

Courtesy of BMW OF NORTH AMERICA, INC.
