Section 35 (Body Equipment - Repair - E90)
>>
Instrument Cluster Trim Panel
>>
51 45... Overview of instrument panel
51 45... Overview of instrument panel
WARNING:
This page is about a different variant/trim than selected.

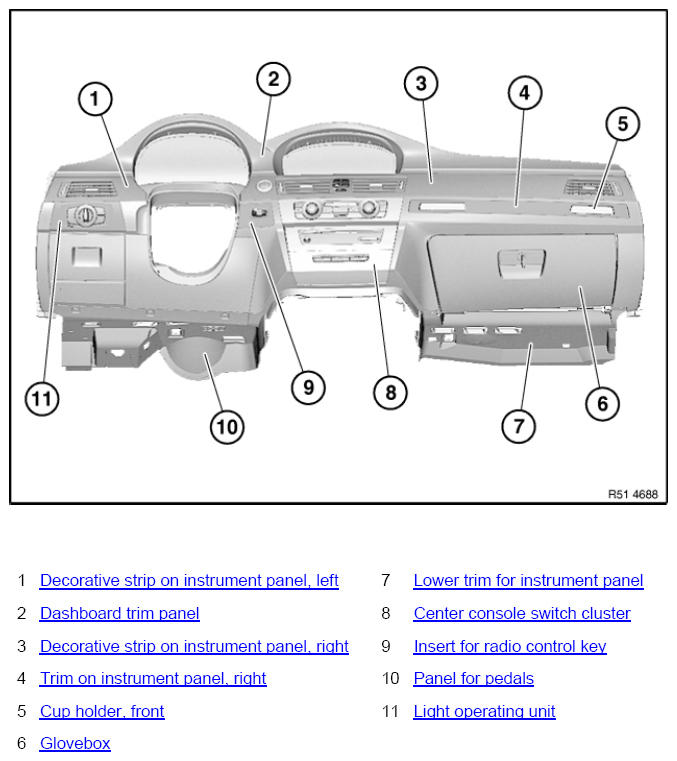

Fig 1: Overview Of Instrument Panel
Courtesy of BMW OF NORTH AMERICA, INC.
