51 71... Removing and installing/replacing radiator seal

WARNING: This page is about a different variant/trim than selected.

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Necessary preliminary tasks:

NOTE: Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Release screws (1).

If necessary, remove underbody protection bracket.

Release catches (2) and feed out radiator seal (3) towards rear.

Fig 1: Releasing Catches And Feed Out Radiator Seal Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

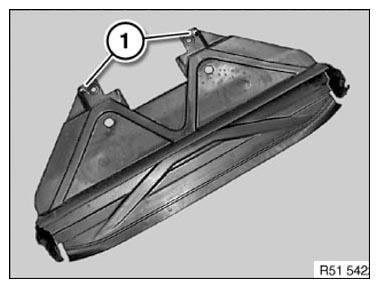

Catches (1) must not be damaged

Fig 2: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
