51 11 185 Removing and installing/replacing side trim grille in bumper trim (M Technic aerodynamic kit)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: The operation is described on the left side; proceed in the same way for the right side.

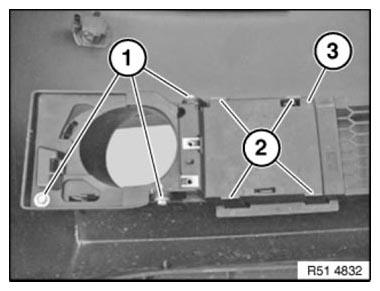

Release screws (1).

Release catches (2) and remove carrier (3) towards front.

Installation:

If necessary, replace faulty metal nuts.

All sheet metal nuts must be correctly fitted.

Fig 1: Identifying Carrier, Catches With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

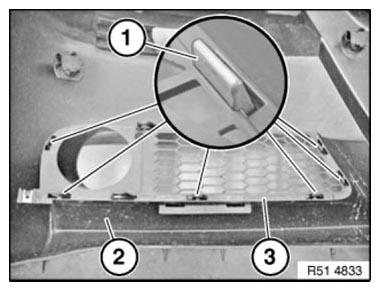

Release catches (1) on trim grille (3).

Remove trim grille (3).

Installation:

Catches (1) on bumper trim (2) must not be damaged.

Fig 2: Identifying Catches On Trim Grille And Bumper Grill

Courtesy of BMW OF NORTH AMERICA, INC.
