Removal from outside

WARNING: This page is about a different variant/trim than selected.

Guide knife carefully between body and window glass.

Run blade of knife parallel to glass.

Take care not to damage paintwork.

Cut through adhesive bead all the way around.

Pull window glass outwards to remove.

Fig 1: Pulling Window Glass Outwards
G08511688Courtesy of BMW OF NORTH AMERICA, INC.

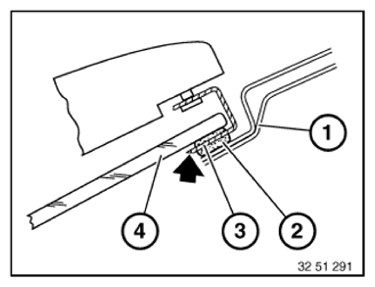

Cut through adhesive bead as closely as possible to window glass.

  1. Body opening
  2. Adhesive bead
  3. Knife
  4. Window
Fig 2: Identifying Body Opening, Adhesive Bead, Knife And Window
G09839322Courtesy of BMW OF NORTH AMERICA, INC.
