Windscreen removal system "Spider"

WARNING: This page is about a different variant/trim than selected.

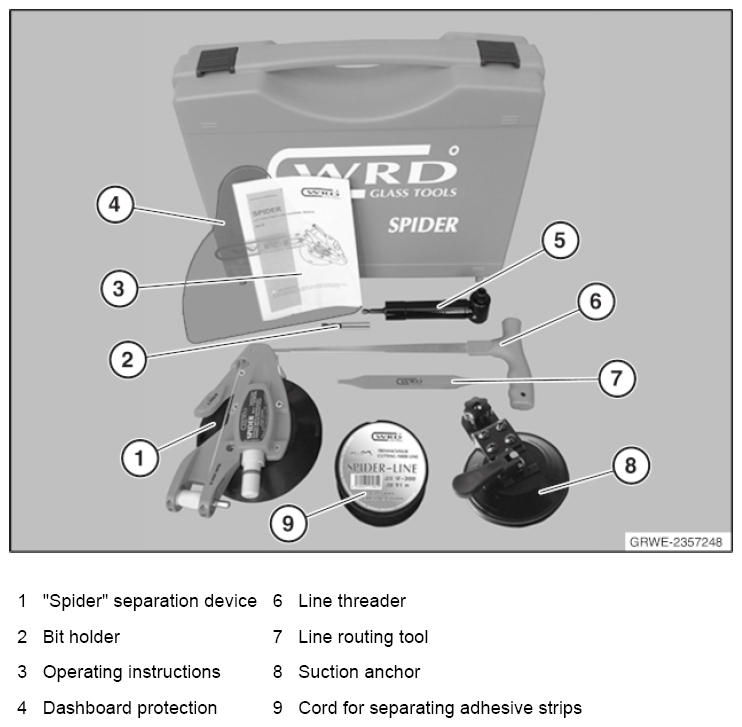

Fig 1: Windscreen Removal System Spider

Courtesy of BMW OF NORTH AMERICA, INC.

Accessories required for operation (not included):

Cordless screwdriver/drill with at least a 10.8 V Li-ion battery or a 18 V Ni-Cd battery and variable speed.

NOTE: Always use a low gear setting.

NOTE: Damage as well as ergonomic and health-endangering damage are minimized with the "Spider" disassembly system.
Sourcing reference:
See BMW Aftersales Assistance Portal (ASAP) - Service/Technical - Workshop Equipment (Start BMW) - Shop Workshop Equipment

WARNING: Follow safety instructions for working on vehicles with airbag systems (risk of injury). See SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS and SAFETY PRECAUTIONS AND GENERAL INFORMATION .

IMPORTANT: Handle sharp-edged tools with care (risk of damage to the head airbag and the window glass).

IMPORTANT: Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.
Suction cup may not be applied at the damaged point (crack in window glass).
The bearing bushes of the shaft (spindle) must always be lubricated.
Always wear safety goggles and protective gloves for your own safety.

The procedure for disassembly of the windscreen is described below as an example.

Deviations in the work procedure can be found in the vehicle-specific repair instructions.
