54 12... Removing and installing/renewing guide element pair for glass slide/tilt sunroof

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

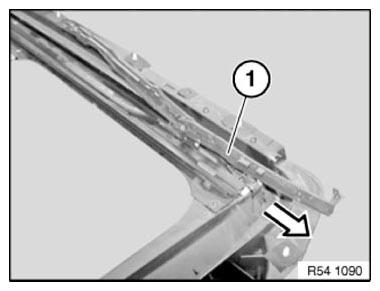

Slide back gate (1).

Fig 1: Identifying Slide Back Gate

Courtesy of BMW OF NORTH AMERICA, INC.

Pry out stop (1) with screwdriver.

Fig 2: Prying Out Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Move gate (1) forward as far as recess (2).

Fig 3: Moving Gate Of Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Lever control lever (1) out of guide rail and turn.

Fig 4: Removing Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Move gate (1) forward as far as end fitting.

Lift gate (1) and slide it forwards out of guide.

Release gate (1) from carriage.

Fig 5: Identifying Gate Of Carriage

Courtesy of BMW OF NORTH AMERICA, INC.

Carriage (1) for gate in guide rail.

Fig 6: Identifying Carriage In Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep to installation sequence.

Move carriage back slightly if necessary.

Retract gate (1) into guide rail.

Fig 7: Installing Gate Into Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Attach gate (1) to carriage (2).

Switch over control lever (3).

Fig 8: Identifying Gate, Carriage And Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Engage control lever (1) in recess.

Fig 9: Identifying Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Spacer (1) of control lever must be situated in guide channel.

Move gate back.

Clip stop into place.

Before installing the drive, make sure both rails are at the front limit position.

Assemble glass slide/tilt sunroof and carry out function check.

INITIALIZE glass slide/tilt sunroof.

Fig 10: Identifying Spacer Of Control Lever

Courtesy of BMW OF NORTH AMERICA, INC.
