34 41 120 Removing and installing or replacing both handbrake Bowden cables

WARNING: This page is about a different variant/trim than selected.

Special tools required:

32 1 030

Necessary preliminary tasks

Remove AIRBAG CONTROL UNIT .

NOTE: After completing work:

Adjusting PARKING BRAKE .

Lock adjuster unit (ASZE).

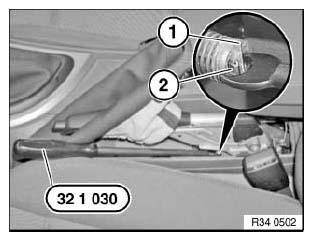

Actuate parking brake lever. Connect special tool 32 1 030 . Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Fig 1: Connecting Special Tool (32 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

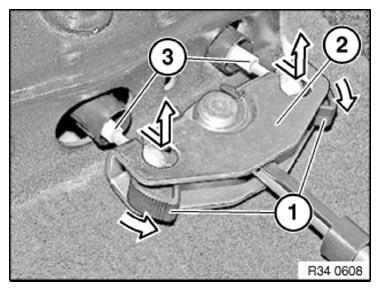

Press retainer (1) in balance arm (2) forward in direction of arrow.

Detach handbrake Bowden cables (3) from balance arm (2).

Fig 2: Pressing Retainer In Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove holder (2).

Installation:

Tightening torque 34 41 2AZ .

Fig 3: Identifying Brake Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To release the parking brake Bowden cable from the expander lock, it is necessary to remove the BRAKE DISC on the following vehicles:

E90 320xd, 325xi, 328xi, 330i, 330xi, 330d, 330xd, 335i, 335xi, 335d, M3
All E91
E92 320xd, 325xi, 325d, 328xi, 330i, 330xi, 330d, 330xd, 335i, 335xi, 335d, M3
E93 320i, 323i, 325i, 325d, 328i, 330i, 330d, 335i, M3
All E84

Release one wheel stud.

Bring wheel into position (tapped hole turned down approx. 20° from horizontal).

F = direction of travel

Installation:

Reinstall wheel stud only after handbrake has been adjusted.

Tightening torque 36 10 1AZ .

Fig 4: Identifying Wheel Travel Direction

Courtesy of BMW OF NORTH AMERICA, INC.

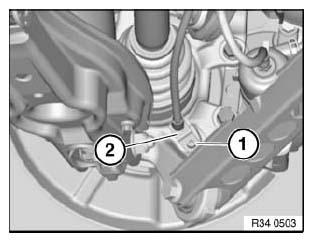

Nipple (1) and expander lock (2) are visible through tapped hole.

Push in core of handbrake cable in direction of expander lock as far as it will go and grip firmly.

Press nipple (1) downwards through tapped hole with a screwdriver.

Pull handbrake cables out of wheel carrier.

Fig 5: Pressing Handbrake Nipple Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert handbrake cable into brake carrier/brake guard plate. Sleeve must be inserted up to stop.

Nipple of handbrake cable must audibly snap into place in expander lock.

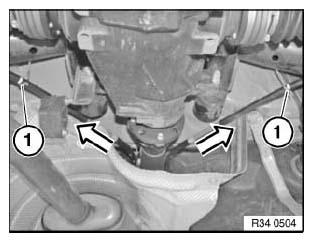

Disconnect handbrake cables from holders (1).

Pull handbrake cables towards rear out of guide tube.

Fig 6: Pulling Handbrake Cables

Courtesy of BMW OF NORTH AMERICA, INC.
