65 77 016 Removing and installing/replacing airbag control unit
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
WARNING:
NOTE AIRBAG SAFETY INSTRUCTIONS
!
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- DISCONNECT BATTERY NEGATIVE LEAD and cover.
- Remove STORAGE COMPARTMENT .
If necessary, remove foam cover from airbag control unit.

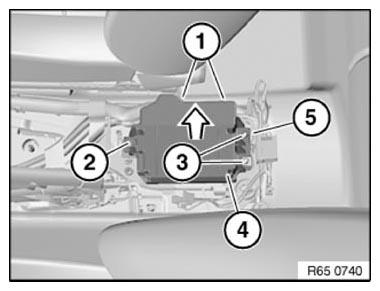

Disconnect plug connection (1).
Release screw (2) and nuts (3).
Tightening torque 65 77 1AZ .
Installation:
Before screwing down airbag control unit (4), make sure negative lead (5) is resting on associated threaded pin.
Remove airbag control unit (4) in direction of arrow.
Replacement:
Carry out PROGRAMMING/CODING .
