Version C

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal process shown for left-hand vibration absorber.

Undo screw (1) and remove vibration absorber (2).

Tightening torque 33 17 3AZ .

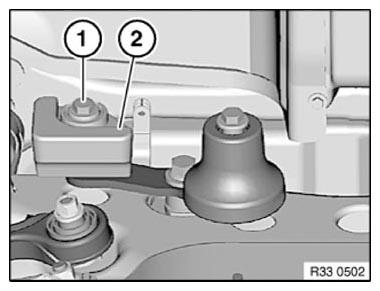

Fig 1: Identifying Vibration Damper Components (Version C)

Courtesy of BMW OF NORTH AMERICA, INC.
