Version B

WARNING: This page is about a different variant/trim than selected.

Undo screw (1) and remove vibration absorber (2).

Tightening torque 33 17 3AZ .

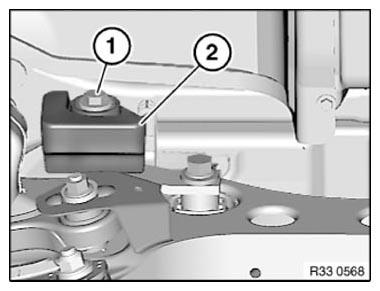

Fig 1: Identifying Vibration Damper Components (Version B)
G09837992Courtesy of BMW OF NORTH AMERICA, INC.
