Version A

WARNING: This page is about a different variant/trim than selected.

Release screw (1).

Tightening torque 33 17 2AZ .

Remove vibration absorber (2).

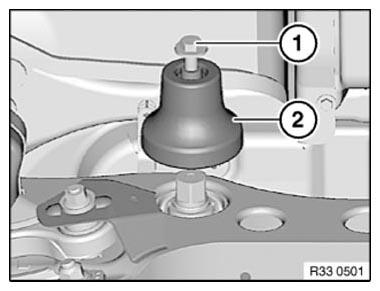

Fig 1: Identifying Vibration Absorber And Mounting Screws
G09837990Courtesy of BMW OF NORTH AMERICA, INC.
