Version A with additional absorber

Only E92 320 D with automatic transmission!

Release bolt (1) and remove the vibration damper (3) with the additional mass (2).

Tightening torque 33 17 4AZ .

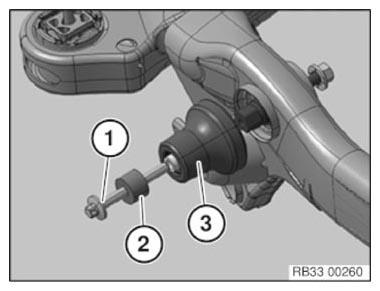

Fig 1: Identifying Vibration Damper Components (Version A)

Courtesy of BMW OF NORTH AMERICA, INC.
