33 33 101 Replacing two rubber mounts (rear) for rear axle carrier
Special tools required:
- 33 4 140
- 33 4 142
- 33 4 147
- 33 4 149
- 33 4 431
- 33 4 434
- 33 4 435
- 33 4 436
- 33 4 437
- 33 4 441
- 33 4 442
- 33 4 443
- 33 4 444
Necessary preliminary tasks
- Lower rear axle support . See 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (SWZ00-2040) or 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (UNIVERSAL LIFTER) .
If necessary, assemble special tool 33 4 140 , 33 4 142 and 33 4 147 as shown.
If necessary, screw new thrust pieces 33 4 149 with countersunk screws on special tool 33 4 140 .
Coat top edge of rubber mount with Circo Light.

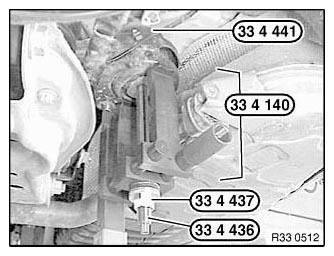

Fit special tool 33 4 441 on rubber mount in such a way that edge of rubber mount disappears in special tool.
Oil special tool 33 4 436 slightly before use.
Align special tool 33 4 140 by way of openings in rubber mount.
Pull rubber mount with special tools 33 4 436 , 33 4 437 , 33 4 140 and 33 4 431 out of bearing bush.
Installation:
Coat new rubber mount with Circo Light.
Insert special tool 33 4 444 in opening on rear axle carrier to avoid damaging the rear axle carrier when drawing in the rubber mount.
Oil special tool 33 4 434 slightly before use.

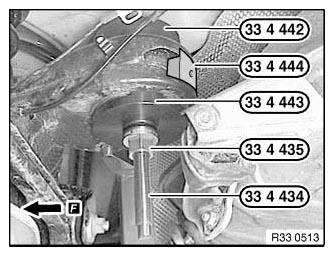

If necessary, assemble special tool 33 4 442 , 33 4 443 , 33 4 435 and 33 4 434 as shown.
Align rubber mount by way of arrow to direction of travel.
Draw in rubber mount as far as it will go.
After installation:
- Bleed BRAKING SYSTEM .
