33 33 101 Replacing two rubber mounts (front) for rear axle carrier

Special tools required:

• 33 4 140
• 33 4 142
• 33 4 147
• 33 4 149
• 33 4 431
• 33 4 432
• 33 4 433
• 33 4 434
• 33 4 435
• 33 4 436
• 33 4 437

Necessary preliminary tasks

• Lower rear axle support  . See 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (SWZ00-2040)  or 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (UNIVERSAL LIFTER) .

If necessary assemble special tools 33 4 140 , 33 4 142 and 33 4 147 as illustrated.

If necessary screw new synchonising keys 33 4 149 onto special tool 33 4 140 with countersunk screws

Coat top edge of rubber mount with Circo Light.

Fit special tool 33 4 431 on rubber mount in such a way that edge of rubber mount disappears in special tool.

Oil special tool 33 4 436 lightly before use.

Align special tool 33 4 140 by way of openings in rubber mount.

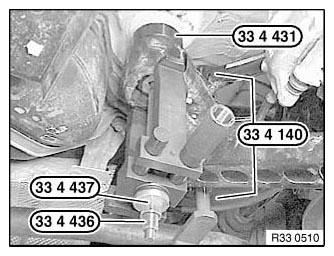

Using the special tools 33 4 436 , 33 4 437 , 33 4 140 and 33 4 431 , pull rubber mount out of bearing bush.

Installation:

Coat new rubber mount with Circo Light.

Oil special tool 33 4 434 lightly before use.

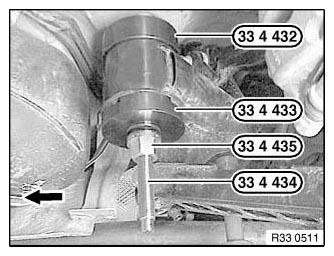

If necessary, assemble 33 4 432 , 33 4 433 , 33 4 435 and 33 4 434 as illustrated.

Align rubber mount by way of arrow to direction of travel.

Draw in rubber mount as far as it will go.

After installation:

• Bleed BRAKING SYSTEM .
