33 00... Notes on repairing threads

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads in the frame side member may be repaired with Helicoil thread inserts. Comply with the PROCEDURE described in the example.

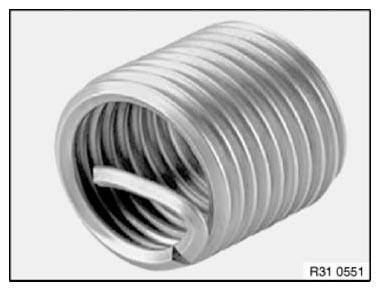

Fig 1: Identifying Helicoil Damaged Threads

Courtesy of BMW OF NORTH AMERICA, INC.
