11 12 000 Removing and installing/sealing cylinder head cover (N54, N54T)

Special tools required:

Necessary preliminary tasks

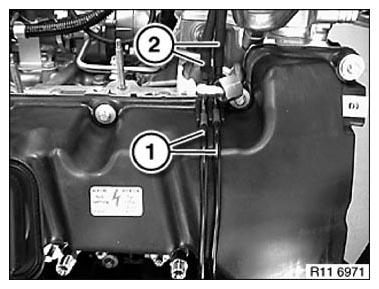

Disconnect vacuum lines (2) from vacuum lines (1).

Unclip vacuum lines (1).

Fig 1: Identifying Vacuum Lines

Courtesy of BMW OF NORTH AMERICA, INC.

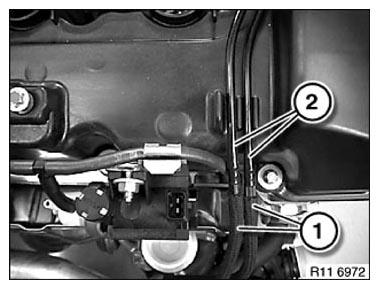

Disconnect vacuum lines (1) from vacuum lines (2).

Unclip vacuum line (2) and lay to one side.

Fig 2: Identifying Vacuum Lines

Courtesy of BMW OF NORTH AMERICA, INC.

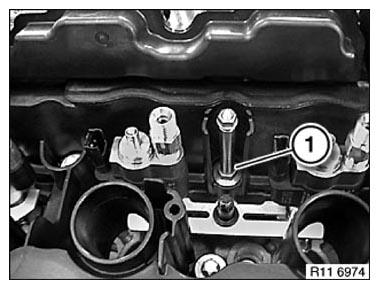

Release screw (1) with special tool 11 8 620 .

Fig 3: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

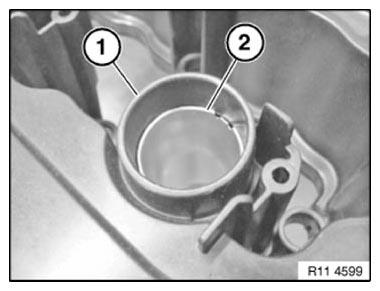

Slotted sleeves (2) for guiding ignition coils in cylinder head cover (1) must be replaced.

Remove slotted sleeves (2).

Fig 4: Identifying Cylinder Head Cover And Slotted Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

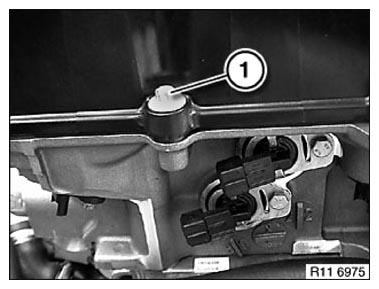

Release screws (1) on cylinder head cover.

Fig 5: Identifying Cylinder Head Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

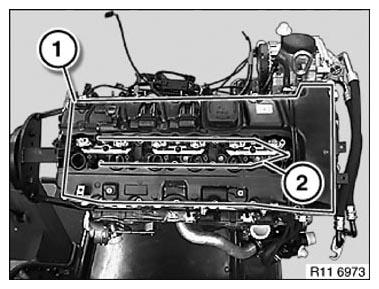

Release screws (1 and 2) along lines.

Tightening torque 11 12 4AZ .

Fig 6: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

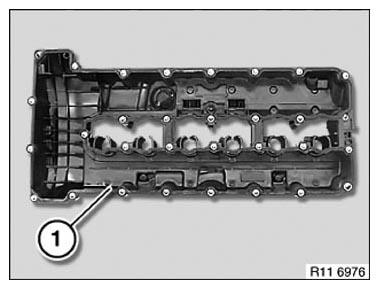

Replace gasket (1) .

Press gasket (1) into cylinder head cover.

Fig 7: Identifying Cylinder Head Cover Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
