13 53 310 Removing and installing or replacing an injector (N53, N54, N54T)

Special tools required:

WARNING: Observe warning on cylinder head cover.
Disconnect NEGATIVE BATTERY TERMINAL (risk of fire due to short-circuiting on dismantling).
Electric fuel pump starts up automatically when door is opened!
Carry out installation work on fuel system only with coolant temperature below 40 °C.

WARNING: Wear full face guard and protective gloves.
Fuel can emerge spontaneously at high velocity from the fuel injectors!
To reduce the fuel pressure, place rag over fuel injector and carefully tap against the fuel injector with a spanner.
There is a risk of injury if the fuel pressure is not reduced!

IMPORTANT: Wear safety goggles.
Oil and dirt particles may get into your eyes!

Before removing the injectors, clean or vacuum off injector slots.

IMPORTANT: When assembling, it is essential to adhere to screwing sequences and tightening torques!
Failure to comply with this requirement may result in leaks!

IMPORTANT: Adhere to conditions of absolute cleanliness when working on the high-pressure fuel system.
Introduced contaminants can cause malfunctions in the system!

Do not allow any dirt particles or foreign bodies to get into the system.
Remove all traces of dirt contamination before removing lines or separate components.
Use only fluff-free cloths.
Seal all fuel system openings with protective caps or plugs.
High pressure lines may be re-screwed a maximum of 10 times.

IMPORTANT: Injectors are not waterproof!
Carry out engine cleaning/washing only with ignition coil cover fitted.

Necessary preliminary tasks:

Remove IGNITION COIL of corresponding cylinder

NOTE:

Ignition coils must not be fouled by fuel!
The resistance of the silicone material is reduced significantly by contact with fuel, which may cause the ignition coil to fail! It is therefore essential to protect the spark plug slot against ingress of fuel with a cloth!
Before installing ignition coils, clean spark plug slots with compressed air.
Make sure the spark plug slot is absolutely clean.
Remove PRESSURE LINE of corresponding cylinder

NOTE: The following description applies to all injectors.

Release connector (1) and remove.

Release screw and remove hold-down device (2).

Remove injector (3).

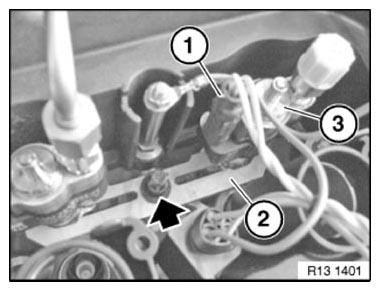

Fig 1: Identifying Injector, Connector, And Screw Of Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If several injectors are removed, ensure that each injector is reinstalled in its original location (cylinder).

Mark injectors.

Procedure in event of stuck injector

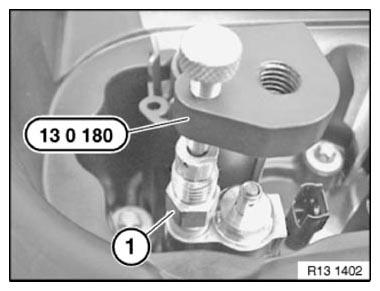

Mount special tool 13 0 180 on injector (1).

Fig 2: Identifying Injector And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 13 5 250 .

Carefully knock out injector (1) with special tools 13 0 180 and 13 5 250 .

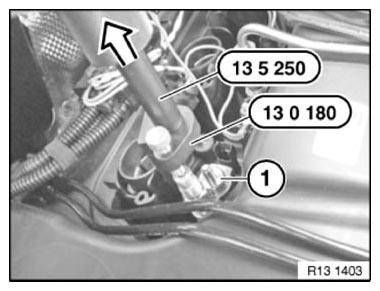

Fig 3: Removing Injector Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

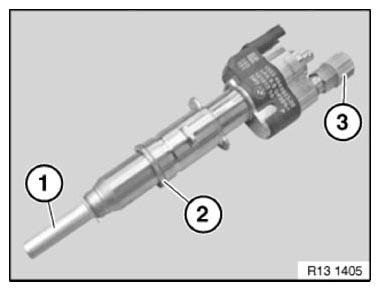

After removing, fit protective caps (1 and 3) to injector tip and fuel line connection.

Protective caps are available from BMW Parts Service.

Fig 4: Identifying Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When reusing fuel injector:

Replace decoupling element (2).
Replace PTFE sealing ring (1).

A PTFE seal which has been heated once by engine operation must be replaced before the fuel injector is reinstalled.

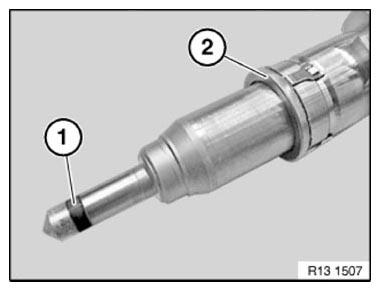

Fig 5: Identifying Decoupling Element And PTFE Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When installing a new injector:

Use a new uncoupling element (2).
Remove protective cap (1) from injector tip max. 10 min. before installation (PTFE sealing ring swells up).

Fig 6: Identifying Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Renew the PTFE sealing ring

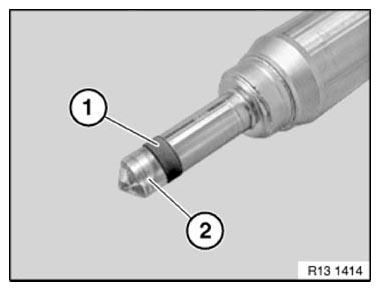

Before replacing PTFE sealing ring (1), make sure hands and work surface are clean and free of oil.

Avoid mechanical contact with injector tip (2).

Fig 7: Identifying Teflon Ring And Injector Tip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove PTFE sealing ring (1) from injector (2) using special tool 13 0 191 .

Use a fluff-free cloth only to remove combustion residues from cylindrical part of injector tip (do not use ultrasound or other tools/agents).

Do not clean injector tip.

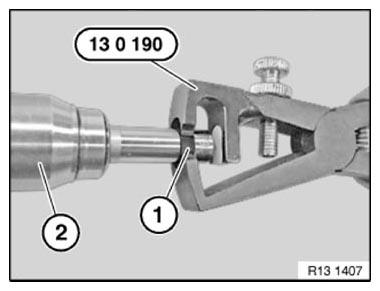

Fig 8: Identifying Special Tool, PTFE Sealing Ring, And Injector

Courtesy of BMW OF NORTH AMERICA, INC.

Slide new PTFE sealing ring (1) onto mounting taper 13 0 195 .

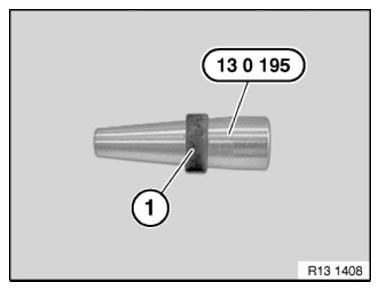

Fig 9: Sliding New PTFE Sealing Ring Onto Mounting Taper

Courtesy of BMW OF NORTH AMERICA, INC.

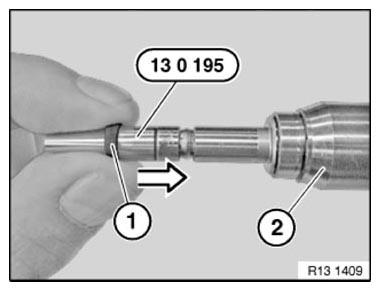

User fingers and mounting taper 13 0 195 to slide PTFE sealing ring (1) onto injector (2).

NOTE:

Do not use fingernails to slide PTFE sealing ring on.
Do not use any lubricating agents.
The sealing ring is expanded when slid on.

Fig 10: Sliding PTFE Sealing Ring Onto Injector

Courtesy of BMW OF NORTH AMERICA, INC.

To bring the expanded PTFE sealing ring to its installation dimension, slide three assembly sleeves with decreasing diameters onto the injector.

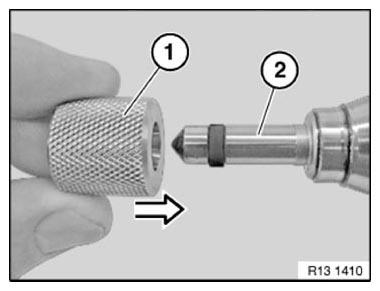

Slide assembly sleeve (1) with large opening first onto injector (1).

Do not use any lubricating agents.

Fig 11: Sliding Assembly Sleeve Onto Injector

Courtesy of BMW OF NORTH AMERICA, INC.

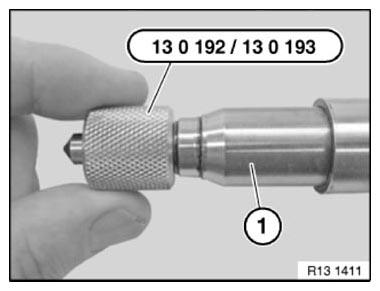

First slide assembly sleeve 13 0 192 (large diameter) onto injector (1).

Then slide assembly sleeve 13 0 193 (medium diameter) onto injector (1).

Fig 12: Sliding Large And Medium Assembly Sleeves Onto Injector

Courtesy of BMW OF NORTH AMERICA, INC.

Finally, press injector (1) into assembly sleeve 13 0 194 (small diameter).

Installation note:

Install injector within 10 minutes or slide on protective cap (Fig 6) (PTFE sealing ring swells up).

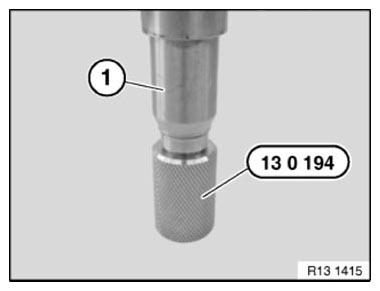

Fig 13: Identifying Injector And Assembly Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installing injector

Installation of injector is described separately from removal.

Before installing injector in engines that have been run

Check injector bore for dirt.
Clean only dirty injector bores.

Important - do not damage injector!

Fig 14: Identifying Decoupling Element And PTFE Sealing Ring
Courtesy of BMW OF NORTH AMERICA, INC.
Clean injector bore: To do so, preferably slide injector without uncoupling element (2) but with new PTFE sealing ring (1) in and out of injector bores several times.
The PTFE sealing ring must then be replaced.
Clean contact surfaces of uncoupling elements (2) in cylinder head.
Replace decoupling element (2).

IMPORTANT: Injection quantity compensation!

An injector quantity compensation must be carried out if an injector is replaced or changed on the cylinder side.

Injector quantity compensation is carried out with the aid of a so-called adjustment value.

The adjustment value is printed in two blocks of three digits on the injector.

The adjustment value must be read off before installation!

Enter the adjustment value according to the installation location (cylinder) of the injector.

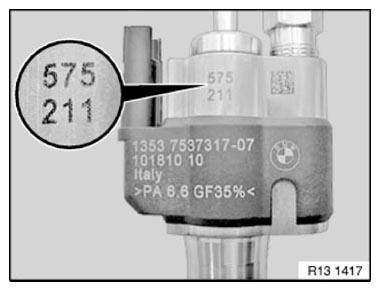

Fig 15: Identifying Adjustment Value Printed On Injector Body

Courtesy of BMW OF NORTH AMERICA, INC.

If injector quantity compensation is not carried out, the engine may run roughly or fail to start.

Description of injector quantity compensation at end of instructions.

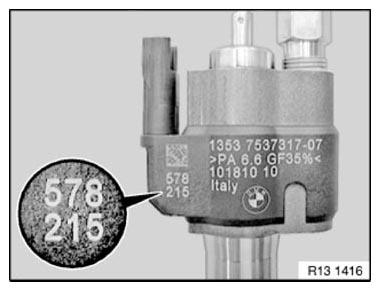

Fig 16: Identifying Adjustment Value Printed On Injector Body

Courtesy of BMW OF NORTH AMERICA, INC.

Installing injector

Installation note:

Install hold-down device (1) with curvature facing upwards.

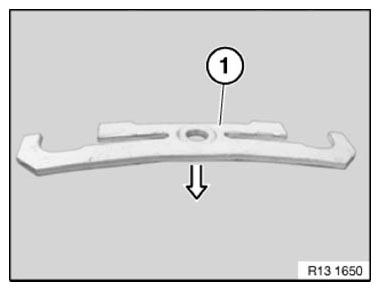

Fig 17: Installing Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

Install injector (3).

Install hold-down device (2).

IMPORTANT: Tighten screw hand-tight only so that hold-down device (2) is slack and if necessary injector can still be turned.

Connect contact plug (1).

Fig 18: Identifying Injector, Connector, And Screw Of Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure hold-down device (1) is correctly seated.

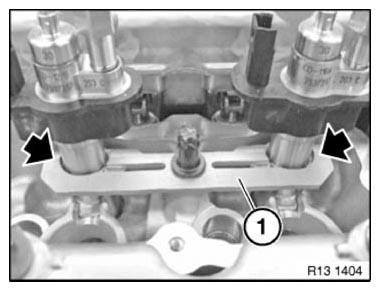

Fig 19: Identifying Correct Seating Of Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

Copper seals (1) that may be fitted on the pressure lines are no longer needed and must be removed.

If reusing the pressure line, apply a light coating of transmission oil to the thread.

New lines are already pretreated.

Fig 20: Identifying Copper Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Install pressure line (1). In so doing, tighten nuts hand-tight only.

IMPORTANT: Connect pressure line (1) without tension only.
To ensure distortion-free installation of the pressure line and to avoid damaging the thread, it must be possible for both nuts to be screwed on easily by hand!
If the nuts cannot be screwed on easily by hand, the injector must if necessary be turned a little.

Fig 21: Connecting Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Turn injector (2) if necessary in direction of arrow until nuts on pressure line can be easily screwed on by hand.

Tighten nuts on pressure line hand-tight.

Then tighten down bolt for hold-down device (1).

Tightening torque 13 53 5AZ .

Fig 22: Identifying Injector And Bolt For Hold-Down Device

Courtesy of BMW OF NORTH AMERICA, INC.

Adhere to tightening sequence:

First tighten down nut (1) on injector.
Then tighten down nut (2) on rail.

When tightening nut (1) on injector, grip hexagon head of injector with wrench (3).

Tighten down nuts with special tool 37 1 151 .

Tightening torque 13 53 8AZ .

Fig 23: Identifying Nuts, Wrench, And Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Perform an injection quantity compensation

Connect BMW diagnosis system
Identify vehicle
Select "Function selection"
Select "Service functions"

Fig 24: Identifying Adjustment Value Printed On Injector Body
Courtesy of BMW OF NORTH AMERICA, INC.
Select "Engine electronics"
Select "Adjustment function"
Select "Adjust injectors"
Change "Test schedule"
For each replaced injector, the adjustment value must be entered according to the installation location (cylinder).

Clean spark plug slot.

Assemble engine.

Check fuel system for tightness.

Check function of DME.
