11 31 051 Replacing timing chain (N55) from March 2012

Special tools required:

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER .
Remove all SPARK PLUGS .
Remove CRANKSHAFT SEAL at front
Remove TENSIONING DEVICE for drive belt.
Remove VIBRATION DAMPER .
Check TIMING .
Remove SEALING COVER for vacuum pump.
Remove SEALING CAP of chain tensioner for oil pump.

Engine removed

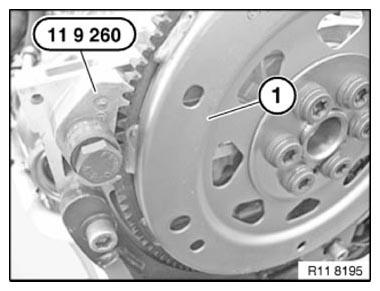

Block crankshaft with special tool 11 9 260 .

IMPORTANT: To release central bolt (1), remove special tool 11 0 300 .

Fig 1: Removing Special Tool 11 0 300

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When central bolt of crankshaft is released, there is no longer a secure connection to timing drive.

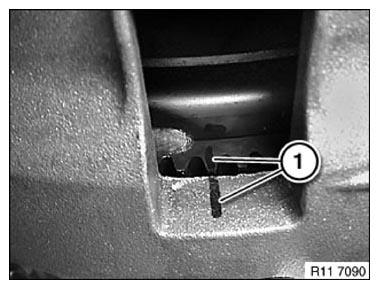

Mark position of crankshaft using a colored mark (1).

This will make future insertion of special tool 11 0 300 easier.

Fig 2: Marking Position Of Crankshaft Using Colored Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission

Block crankshaft with special tool 11 8 660 .

Fig 3: Blocking Crankshaft Using Special Tool 11 8 660

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with manual gearbox

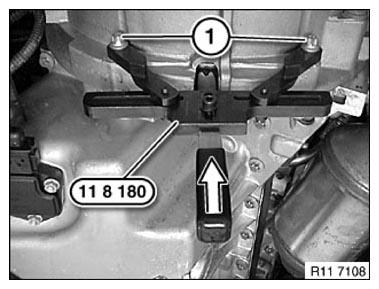

Attach special tool 11 8 180 to manual transmission with existing transmission bolts (1).

Block crankshaft in direction of arrow with special tool.

Fig 4: Attaching Special Tool 11 8 180 To Manual With Existing Transmission Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before releasing the central bolt, the hydraulic chain tensioner must be drained.

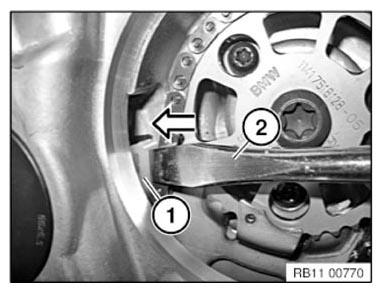

Carefully press tensioning rail (1) with a suitable screwdriver (2) in direction of arrow.

As the oil pressure in the chain tensioner can only be drained pulsating, the tensioning rail (1) must be pressed several times.

Fig 5: Removing Hydraulic Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

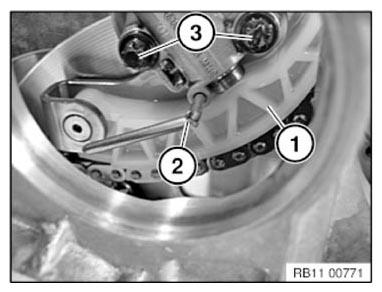

Press the tensioning rail (1) and hold down.

Fix chain tensioner piston in position with a suitable lock pin (2).

Fig 6: Pressing Tensioning Rail

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Breakaway torque of the central bolt > 600 Newton meters
A 3/4-inch tool (large powered square) is required to release central bolt.

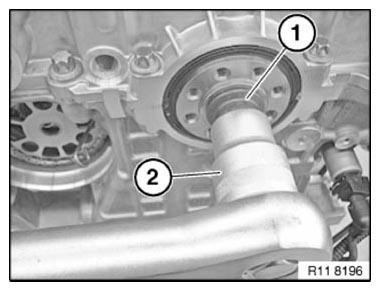

Release central bolt (1) with 3/4-inch tool (2).

Tightening torque 11 21 1AZ .

Fig 7: Releasing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove CHAIN TENSIONER .

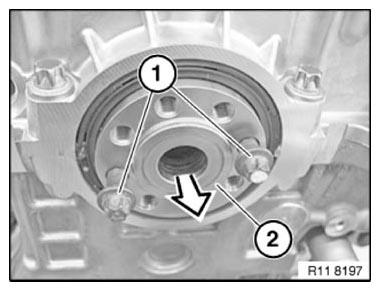

Screw in vibration absorber screws (1).

Move hub (2) on crankshaft forward in direction of arrow to remove.

Fig 8: Moving Hub On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

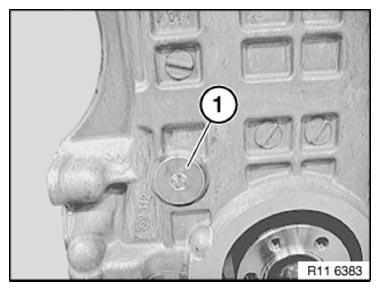

Open screw plug (1).

Tightening torque 11 31 8AZ .

Fig 9: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

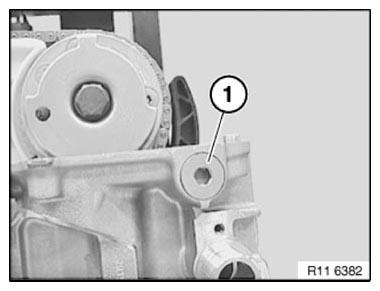

Open screw plug (1).

Tightening torque 11 11 7AZ .

Installation note:

Replace aluminium screws.

Fig 10: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

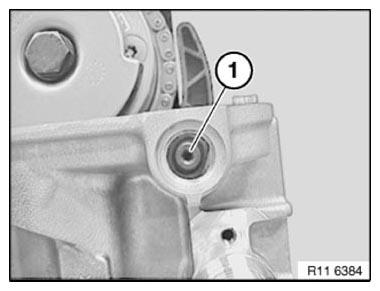

Release bearing journal (1) from timing chain module on cylinder head.

Tightening torque 11 31 6AZ .

Fig 11: Identifying Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

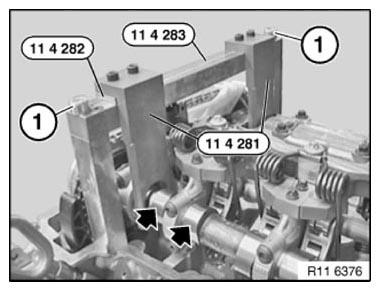

IMPORTANT: Install special tool 11 4 280 to release the central bolts on the intake and exhaust camshaft adjusters.

Remove INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Fig 12: Installing Special Tool 11 4 280 To Release Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

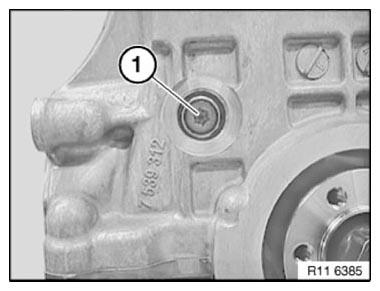

Release bearing journal (1) from timing chain module on crankcase.

Tightening torque 11 31 5AZ .

Fig 13: Identifying Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

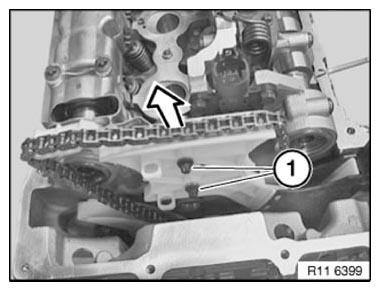

Release bolts (1) from timing chain module on cylinder head.

Tightening torque 11 31 4AZ .

Remove chain module with timing chain and camshaft sprocket upwards in direction of arrow.

NOTE: Graphic N52.

Fig 14: Releasing Bolts From Timing Chain Module On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

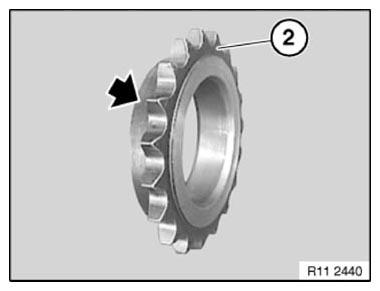

IMPORTANT: Note direction of installation of camshaft sprocket (2).
Collar (see arrow in illustration) on camshaft sprocket (2) points to engine .
Incorrect assembly will result in engine damage .

Fig 15: Locating Camshaft Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

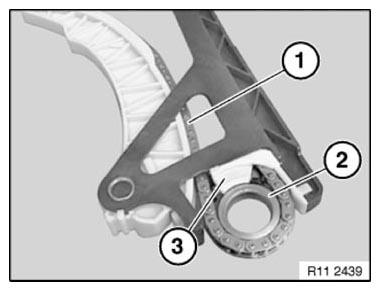

Pull timing chain (1) upwards until camshaft sprocket (2) engages chain guide (3).

Install timing chain (1) and sprocket (2) in this position.

Installation note:

Always hold timing chain (1) under tension.

Timing chain (1) may jam on chain guide (3).

Fig 16: Installing Timing Chain And Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) with hub for crankshaft.

Tighten down central bolt (1).

Tightening torque 11 21 1AZ .

Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Install CHAIN TENSIONER .

Fig 17: Inserting Central Bolt With Hub For Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine twice.

Check TIMING .

If necessary, adjust VALVE TIMING .

Replace front CRANKSHAFT SEAL .

Assemble engine.
