11 23 010 Removing and installing/replacing vibration damper (N55)

Special tools required:

Necessary preliminary tasks:

Remove underbody protection. See FRONT UNDERBODY PROTECTION or FRONT UNDERBODY PROTECTION (AWD) .
Remove DRIVE BELT .

NOTE: Gearbox removed:

Block crankshaft with special tool 11 9 260 .

NOTE: Picture of flywheel removal.

Fig 1: Blocking Crankshaft Using Special Tool 11 9 260

G09836167

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with manual gearbox:

Block crankshaft with special tool 11 8 180 .

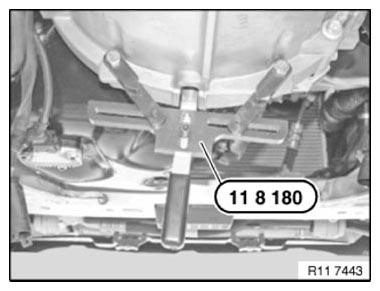

Fig 2: Blocking Crankshaft Using Special Tool 11 8 180

G09836168

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with automatic transmission:

Block crankshaft with special tool 11 8 660 .

Fig 3: Blocking Crankshaft Using Special Tool 11 8 660

G09836169

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not release central bolt.

If the central bolt is accidentally loosened, the timing must be readjusted.

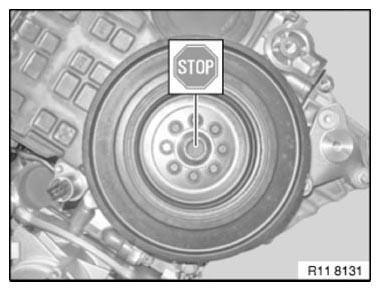

Fig 4: Identifying Vibration Damper Central Bolt

G09836170

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 to 8).

Remove vibration damper (1).

Screws on vibration damper Tightening torque 11 23 1AZ .

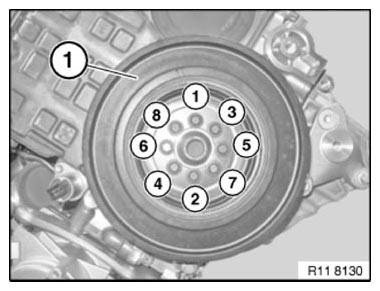

Fig 5: Vibration Damper Bolts Tightening/Loosening Sequence

G09836171

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
