11 65 045 Removing and installing/replacing low-pressure turbocharger (large turbocharger)

Special tools required

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Recycling:

Catch escaping engine oil with suitable auxiliary materials.

Observe country-specific waste disposal regulations.

Necessary preliminary work:

IMPORTANT: In event of exhaust turbocharger damage:

check the above for foreign bodies, damage and correct function, replacing if necessary.

Unfasten screw (1)

Fig 1: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove holder (2).

Release nut (3) and disengage linkage.

Fig 2: Identifying Holder, Screws And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

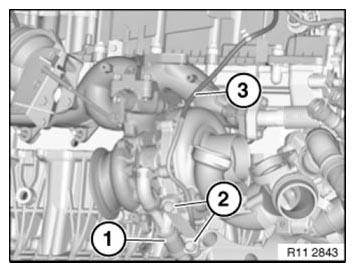

Detach vacuum hose (3) from connecting piece.

Unfasten screws (2).

Unfasten hose clamp (1) from oil return.

Fig 3: Identifying Hose Clamp, Vacuum Hose And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) with special tool 11 6 050 .

Tightening torque 11 65 2AZ .

Remove L.P. turbocharger downwards.

Installation note:

Clean sealing surfaces and replace gasket.

To avoid damaging the threads and prevent exhaust turbocharger leaks, insert mounting bolts in 1/2 turns simultaneously.

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Spacer ring (1) must be fitted without fail.
Clean threads (2) with thread cutter.

Fig 5: Identifying Spacer Ring And Threads

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust turbine control flap.

Assemble engine.
