11 65 040 Removing and installing or replacing high-pressure exhaust turbocharger (small turbocharger)

WARNING: Scalding hazard!
Only perform these tasks on an engine that has cooled down.

Recycling:

Catch escaping engine oil in a suitable container.

Observe country-specific waste-disposal regulations.

Necessary preliminary tasks:

Remove acoustic cover at front.
Remove acoustic cover at rear
Remove AIR INTAKE FILTER HOUSING .
Remove TENSION STRUT ON SPRING STRUT DOME

IMPORTANT: In event of turbocharger damage:

Pressure pipes
Intercooler
Intake air manifold

check the above for foreign bodies, damage and correct operation, replacing if necessary.

Release screws (1).

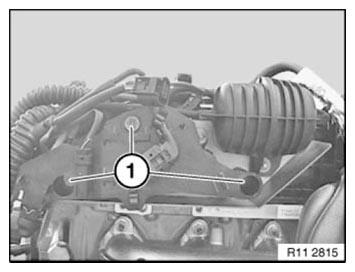

Fig 1: Identifying Turbocharger Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and mounting screws at top.

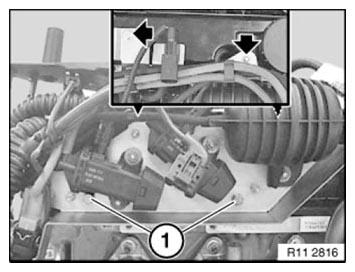

Fig 2: Identifying Screws And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining plate (1) and set down in upward direction of valve hood.

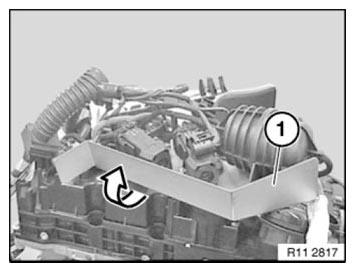

Fig 3: Removing Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on heat shield (1).

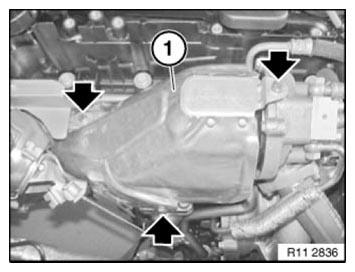

Fig 4: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1) from air duct (2).

Remove air duct (2) towards top.

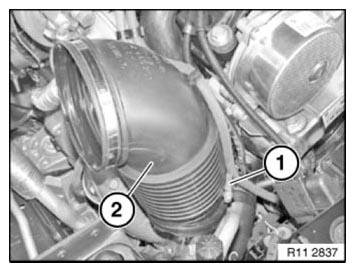

Fig 5: Identifying Low-Pressure Turbocharger Air Pipe And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and pull bracket off stud.

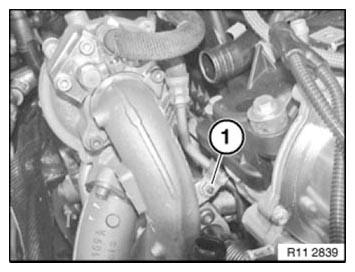

Fig 6: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Detach oil line (1).

Tightening torque 11 42 5AZ .

Detach oil line (2).

Tightening torque 11 42 5AZ .

Unfasten hose clip (3).

Release screw (4).

Release screws (5) and (6) from connecting pipe.

NOTE: Replace all O-rings and seals.

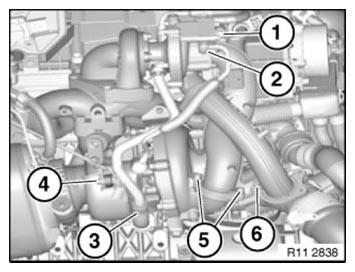

Fig 7: Identifying Engine Oil Pipe, Hose Clamp And Connecting Pipe Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 1AZ

Unfasten screws (2).

Tightening torque 11 65 2AZ .

Remove exhaust turbocharger.

Installation:

Clean sealing surfaces and replace seal.

Apply a thin coating of copper paste to bolt thread.

To avoid damaging the threads and prevent turbocharger leakage, insert retaining screws in 1/2 turns simultaneously.

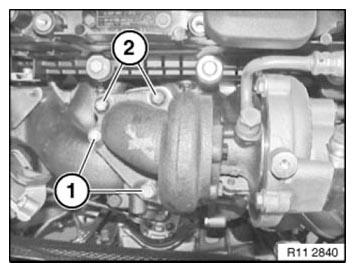

Fig 8: Identifying Exhaust Turbocharger Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
