17 11 000 Removing and installing additional water cooler (N54T)
WARNING:
Risk of scalding!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
IMPORTANT:
Wear safety goggles and protective gloves.
Necessary preliminary work:
- Follow instructions for REPAIR WORK ON THE COOLING SYSTEM .
- Remove FRONT SECTION OF WHEEL ARCH COVER on left.
- Drain coolant. See 17 00 008 Draining and adding coolant (N54, N54T) .
- Unlock coolant hoses and detach.

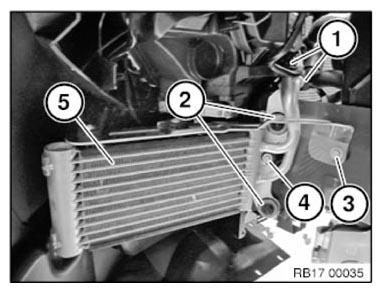

Release and disconnect coolant hoses (1).
Unfasten screws (2).
Tightening torque 17 11 5AZ .
Release screw (3).
Tightening torque 17 11 6AZ .
Release screw (4) from air duct.
Feed out additional water cooler (5) and remove.
Reassemble the vehicle.
