51 71 038 Removing and installing/replacing front left or right wheel arch cover (front section) (W/ RDC - Tire Pressure Control)
NOTE:
Prior to removing, pay attention to the exact installation position with respect to the adjoining components.
Necessary preliminary tasks:
- If necessary, remove left or right FRONT WHEEL
NOTE:
The operation is described on the left side; proceed in the same way for the right side.
NOTE:
Front axle removed for purposes of clarity.
Release screws (1).
Slacken nut (2).
Feed out front wheel arch cover (3) and if necessary disconnect electrical plug connection.
Installation:
Make sure front wheel arch cover (3) is correctly seated.

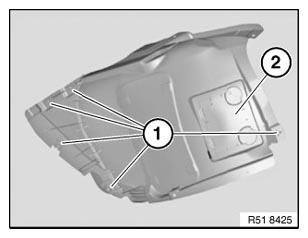

Replacement:
- Modify sheet nuts (1)
- Modify cover (2)
Version with RDC:
- Modify TRIGGER TRANSMITTER
Installation:
If necessary, replace faulty metal nuts (1).
