51 16 366 Removing and installing right glovebox with housing
Special tools required:
Necessary preliminary tasks:
- Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT
- Remove DECORATIVE STRIP on instrument panel trim
- Remove OUTER TRIM ON GLOVEBOX
- Remove GLOVEBOX LIGHT
Version with CCC/ASK:
- Release INSTRUMENT PANEL TRIM (do not remove)
Version without CCC/ASK:
- Release RADIO RECEIVER (do not remove)
NOTE:
CCC C
ar C
ommunication C
omputer
ASK A udio S ystem C ontroller
ASK A udio S ystem C ontroller
Description is shown on the E82 by way of example. There may be differences in detail in the case of other models.
Release screw (1).
Release screw (2) on holder (3).

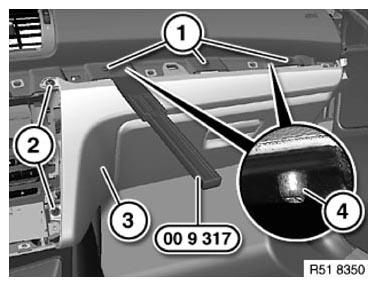

Release screws (1 and 2).
Raise guides (4) of instrument panel with special tool 00 9 317 and pull out glovebox (3) completely.
If necessary, feed cable out of glovebox (3).
