51 11... Removing and installing/replacing air duct for side bumper trim (M Coupe)

Necessary preliminary tasks:

• Remove FRONT BUMPER TRIM .

Release screw (1) and remove air duct (2).

Tightening torque 51 75 1AZ .

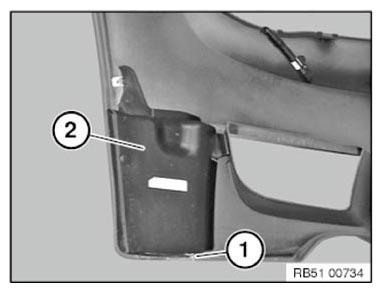

Fig 1: Identifying Air Duct And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
