51 11 187 Removing and installing/replacing grille in bumper trim on left or right

Necessary preliminary tasks:

Vehicles with fog lamps only:

Vehicles without fog lamps only:

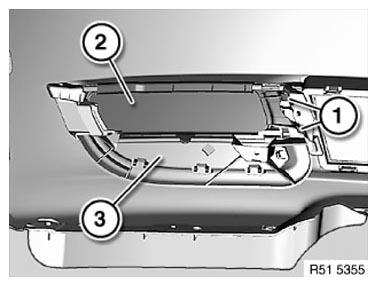

Release catches (1) and feed fog lamp cover (2) out of fog lamp mounting (3).

Installation:

Catches (1) on fog lamp cover (2) must not be damaged.

Fig 1: Identifying Catches And Fog Lamp Cover

Courtesy of BMW OF NORTH AMERICA, INC.

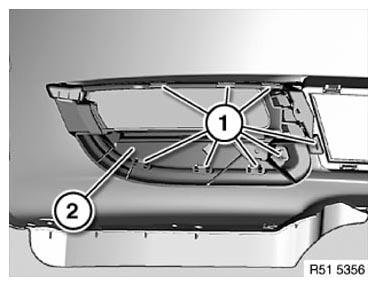

Release catches (1) and remove fog lamp mounting (2) from bumper trim.

Installation:

Catches (1) must not be damaged

Fig 2: Identifying Catches And Fog Lamp Mounting From Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
