52 24 010 Removing And Installing/Replacing Rear Seat Backrest (Convertible)

Necessary preliminary tasks:

• Remove REAR SEAT .
• Remove GUIDE SLEEVES FOR HEAD RESTRAINT .

Release screws (1) on rear seat backrest.

Tightening torque: 52 24 01AZ .

Remove rear seat backrest.

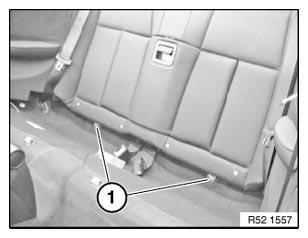

Fig 1: Identifying Screws On Rear Seat Backrest

Courtesy of BMW OF NORTH AMERICA, INC.
