52 24 475 Replacing Left Or Right Guide Sleeves (Convertible)

Necessary preliminary tasks:

IMPORTANT:

Risk of damage!

Do not remove trim (1) from guide sleeves.

Remove left and right guide sleeves complete with trims only.

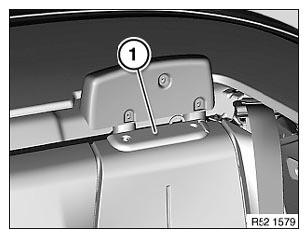

Fig 1: Identifying Trim From Guide Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

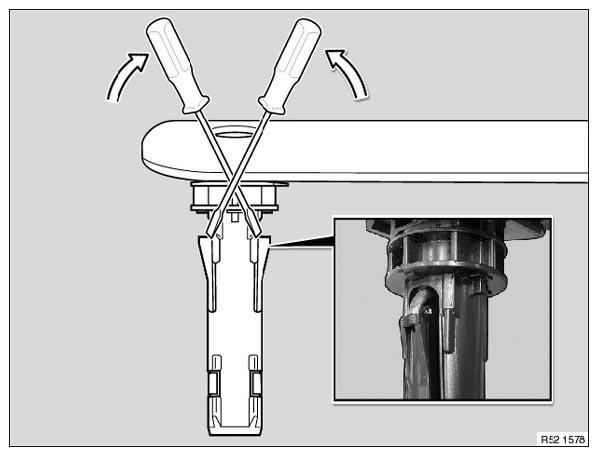

Fig 2: Pulling Retaining Lugs Back & Respective Guide Sleeve Top Little

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock left and right guide sleeves in succession.

Using two screwdrivers, pull retaining lugs back and pull out respective guide sleeve towards top a little.

Unlock second guide sleeve and simultaneously remove both guide sleeves with trim towards top.
