51 36 070 Removing and installing/replacing left or right rear side window

Special tools required:

IMPORTANT: The "INSTRUCTIONS ON WINDOW BONDING " serve as the basis for this repair instructions and must be observed without fail.
Cover rear side panels with protective covers.

NOTE: Removal is performed with ROLL OUT 2000 . Only use an oscillating blade when replacing the windscreen.

Necessary preliminary tasks:

Remove TRIM STRIP FROM DRIP MOLDING
REMOVE SIDE TRIM PANEL

Replacement:

Replace COVER ON SIDE WINDOW
Remove TRIM PANEL FOR DOOR POST (B-pillar)
Remove TRIM PANEL FOR ROOF PILLAR AT REAR (C-pillar)

IMPORTANT: Tape off body in area of piercing point with fabric adhesive tape (risk of damage).

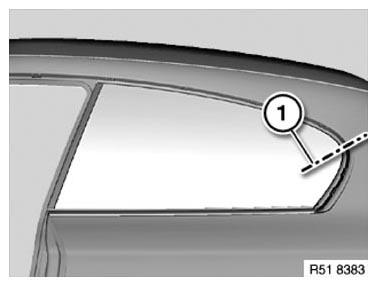

Push wire starter from ROLL OUT 2000 at line (1) through adhesive bead.

Fig 1: Identifying C-Pillar Adhesive Bead Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

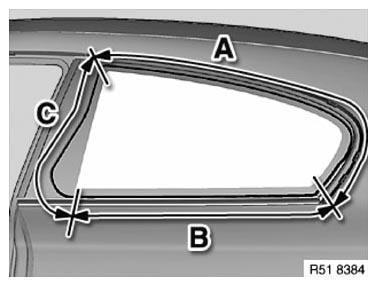

Only replace:

Cut area (A) from the outside with a U-shape knife of 19.5 mm.

Cut area (B and C) from the inside with a strait knife with thrust roller.

For area (B) adjust the thrust roller to 30 mm.

Area (C) is cut without the thrust roller.

For area (C), which is not reachable with the knife, a scalpel for heavy duty demands must be used.

Fig 2: Identifying Side Window Sealant Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

During the cutting procedure, a 2nd person must pull the side window at little in outwards direction using special tool 51 3 010 .

Only replace:

Fit straight blade with adjustable roller (Sourcing Reference: BMW Parts Department) on tool and set dimension (X).

NOTE: Sharpen knife blade before every use on a running machine (even with new knife blades).

Tape off side window and body flange all round with fabric adhesive tape (e.g. Tesa).

Fig 3: Identifying Straight Blade Distance From Roller

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Secure outside of side window with adhesive tape.

Insert blade carefully between body and side window.

Guide web of blade parallel to side window. Cut through adhesive bead as close to body as possible.

Remove the side window with a special tool 51 3 010 .

Fig 4: Inserting Blade Between Body And Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

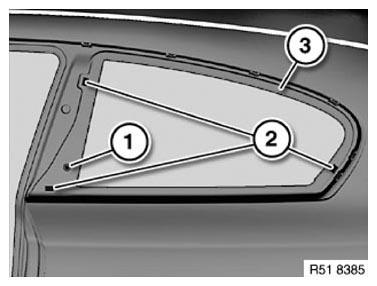

Fitting 3 dual-lock tapes:

Remove remainder of centering pin (1).

Remove rest of dual-lock tapes (2) and clean bonding area.

Stick new Dual Lock tapes (2) to raised marking on body flange (3).

Dual Lock tapes:

1 = 20 x 10 mm

Dual lock tapes on side window must be matched to dual lock tapes on sheet metal flange.

Fig 5: Identifying Centering Pin, Dual Lock Tapes And Body Flange

Courtesy of BMW OF NORTH AMERICA, INC.

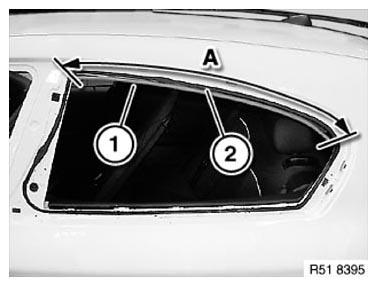

IMPORTANT: In area (A) the adhesive bead lies close to the body edge and can come in contact with the roofliner during bonding if applicable (airbag, if applicable, cannot unfold correctly).
Insert foil for protection between the roofliner (1) and body edge (2) and pull it out approx. 30 min. after bonding.
Observe the position of the adhesive bead in area (A) (see Fig 8).

Fig 6: Identifying Adhesive Bead Area

Courtesy of BMW OF NORTH AMERICA, INC.

Cut air vent to size.

A = 7 ±1 mm

B= 11_-2 mm

C= 4 mm

D= 2.5 mm

Fig 7: Identifying Air Vent Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

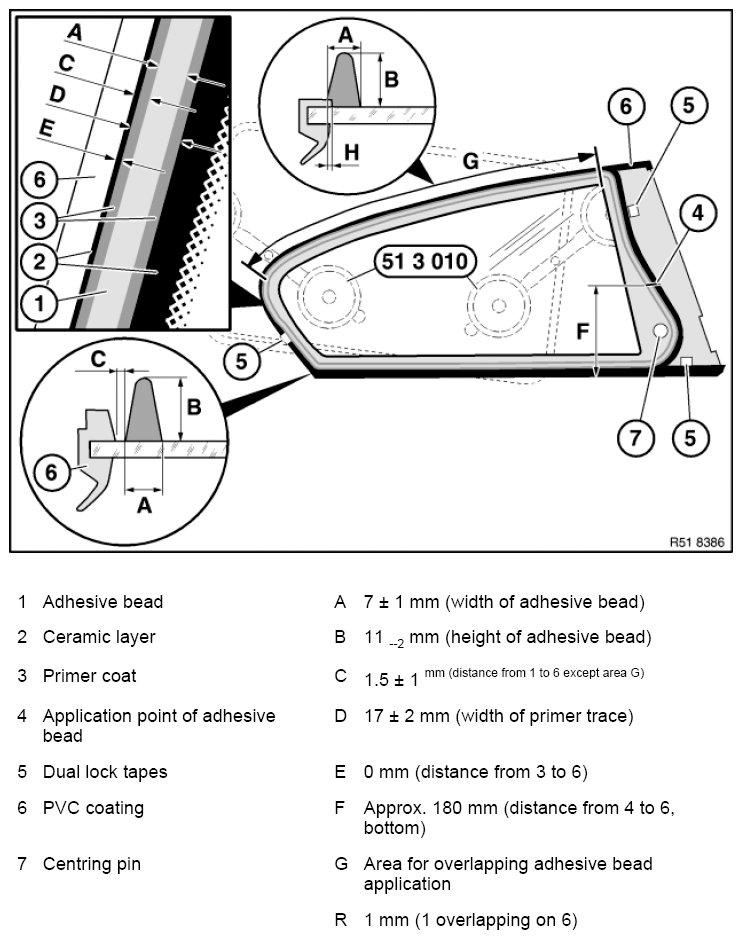

Overview for side window bonding, rear (E81/E82):

Fig 8: Overview For Side Window Bonding - Rear (E81/E82)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach two special tools 51 3 010 to tool trolley. Moisten suction faces and secure side window.

When reusing the existing side window, remove residual adhesive to 0.5 mm.

If necessary, remove remainder of dual lock tapes (5). Clean bonding surface and stick on new dual lock tapes (5).

Almost vertical part (B) of cement bead (1) must face PVC coating (6).

In area G, apply adhesive bead approx. 1 mm overlapping on PVC coating (6).

Spread bead joint (4) with special tool 00 9 322 .

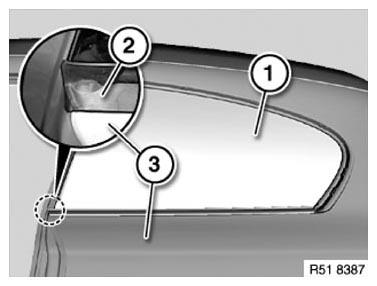

Attach side window (1) with special tool 51 3 010 at bottom first with PVC spray-coating (2).

Fit centering pin in corresponding bore hole of new side window.

Align the PVC coating (2) of the side window (1) flush to the side wall (3).

Fold in side window (1) at top.

Snap side window (1) into dual-lock tapes.

Fix side window (1) in position with yellow plastic adhesive tape (sourcing reference: BMW Parts Department).

Fig 9: Identifying PVC Coating, Side Window And Side Wall

Courtesy of BMW OF NORTH AMERICA, INC.

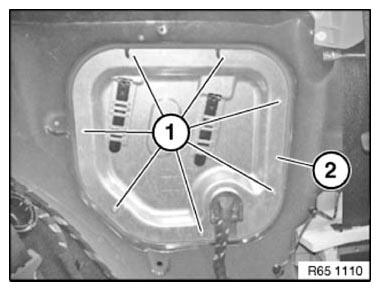

NOTE: The sawed off pin of the side window can rattle in the body and must be removed.

Release screws (1) and remove retaining plate (2).

Find the pin and remove.

Fig 10: Identifying Retaining Plate Screws

Courtesy of BMW OF NORTH AMERICA, INC.
