65 50 010 Removing and installing/replacing video module for on-board monitor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove panel for luggage compartment partition, refer to 51 47 140 REMOVING AND INSTALLING/REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION

Mark antenna plugs (3) and disconnect.

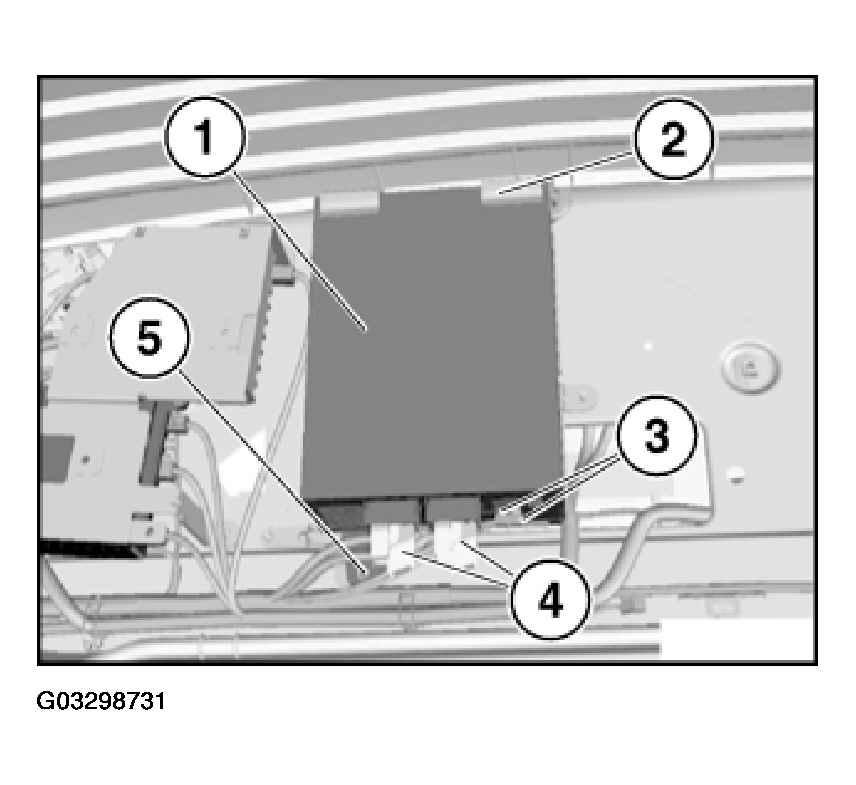

Fig 1: Removing Video Module For On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (4) and disconnect.

Release nut (5).

Remove video module for on-board monitor (1) from holder (2).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
If necessary, car & key memory
CD "CIP"

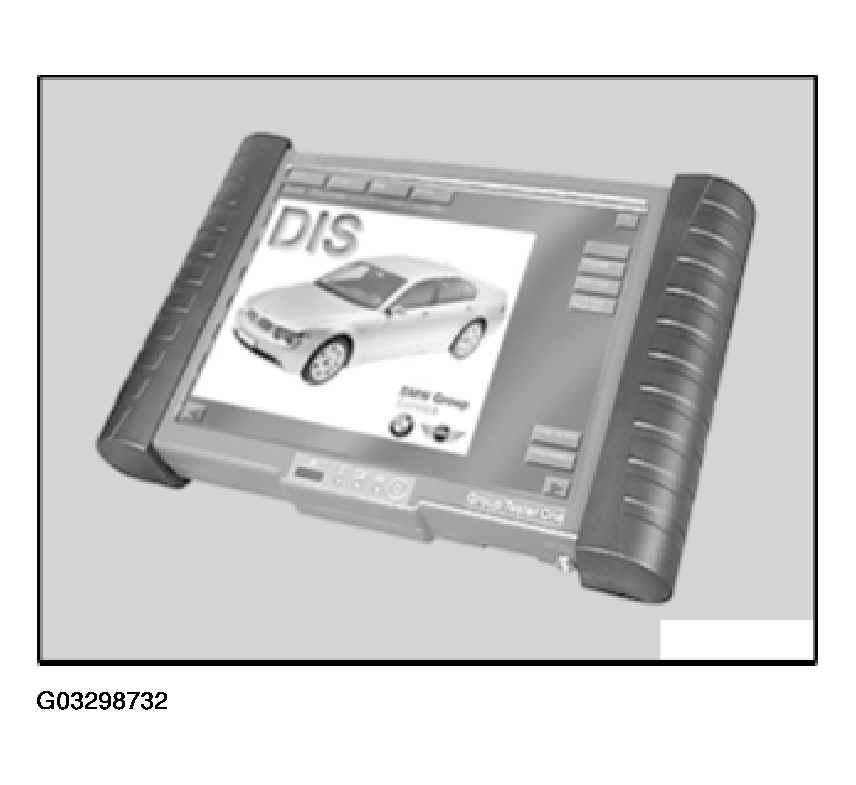

Fig 2: Identifying DIS
Courtesy of BMW OF NORTH AMERICA, INC.
