51 47 140 Removing and installing/replacing panel for luggage compartment partition
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove luggage compartment floor trim panel. See 51 47 131 Replacing Front Trim For Luggage Compartment Floor .
- Remove center mount for convertible top compartment floor. See 54 31 175 REMOVING AND INSTALLING/REPLACING CONVERTIBLE TOP COMPARTMENT FLOOR .
- Remove Trim Behind Rollover Bar on left and right.

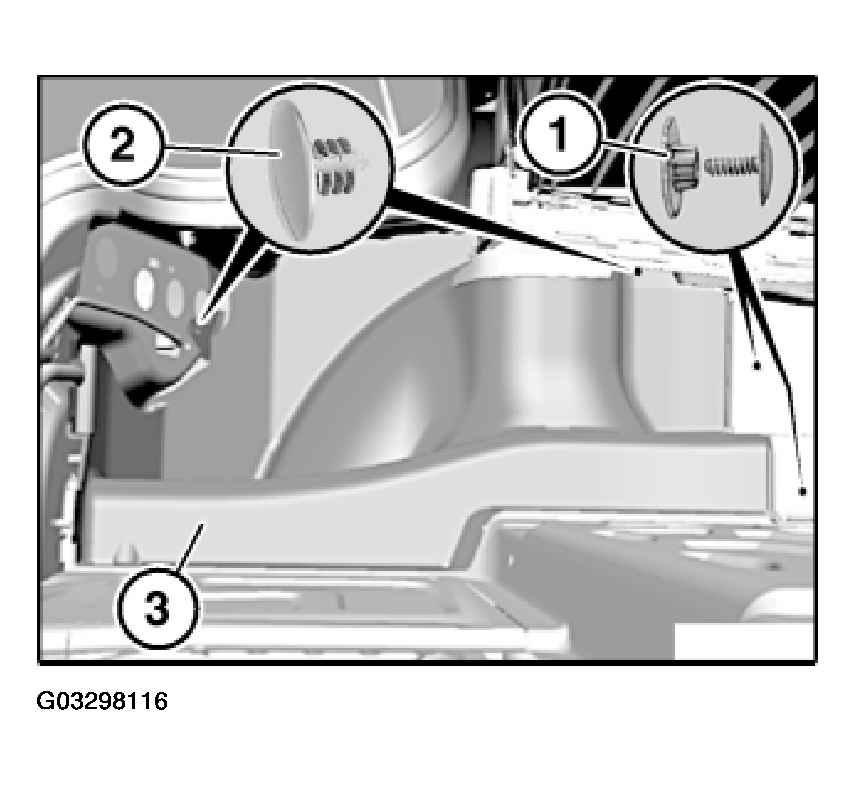

Release screw clips (1) of luggage compartment wheel arch trim on left and right.

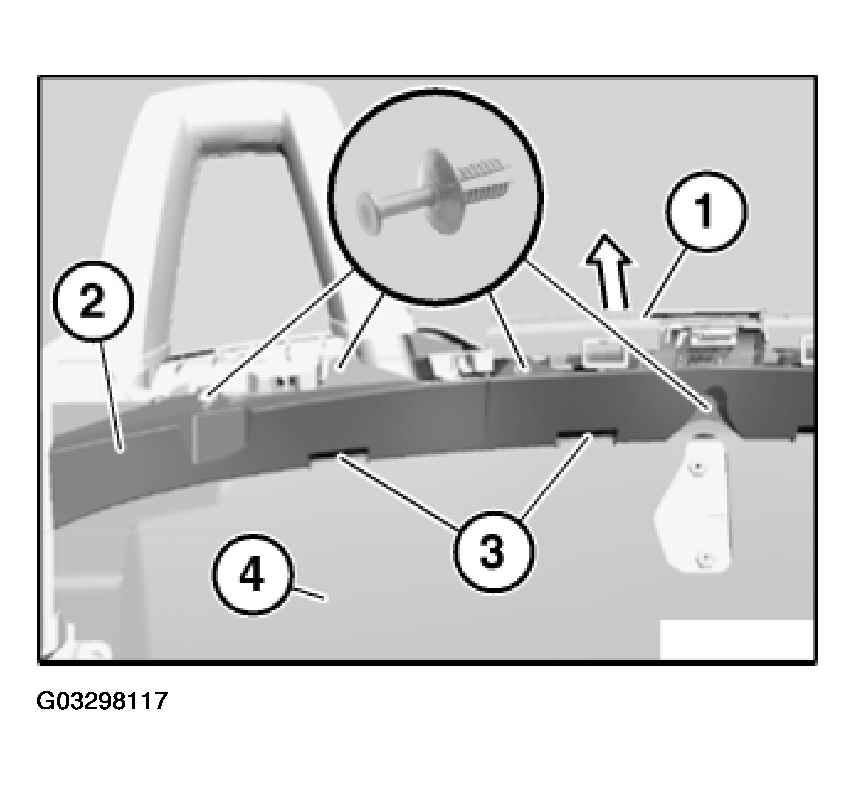

Raise trim (1) for rear storage box slightly.
Release clips from deflector (2).
Lift deflector (2) out of tabs (3) of partition (4).
Cut partition in area of emergency release facility so that knob can fit through.
Feed out emergency release knob and remove partition (4).
Installation:
Make sure deflector (2) is correctly seated in tabs (3).
